Aluminium (7075-T6) - TCK - similar ISO 4762

Manufacturer:
www.jaeger-schrauben.de

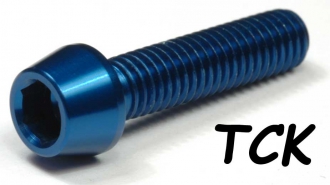

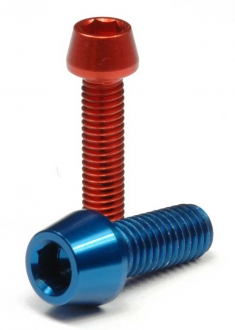

Allen head bolt with conical head
similar to ISO 4762 / old DIN 912

Material:
high tensile aluminum 7075-T6
aircraft application

Tensile strength:
540 - 600 N/mm²
CNC made by Jäger Schrauben
rolled thread (from diameter M5 to M10)

Spanner size:
M4 = SW 3, M5 = SW 4, M6 = SW 5,
M8 = SW6, M10 = SW 8

Head diameter:
M4 = 7 mm
M5 = 8,5 mm
M6 = 10 mm
M8 = 13 mm
M10 = 16 mm

height of head:
M3 = 3 mm
M4 = 4 mm
M5 = 5 mm
M6 = 6 mm
M8 = 8 mm
M10 = 10 mm

Surface finish:
red, blue, violet, gold, silver, black, green and orange are highgloss anodized,
or natural (high corrosive)

Prices:
All prices per unit.
Specialcolors green / orange 10% surcharge.
See this link [ Hier klicken ]

Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent

Options:

• color: please choose
• color: red
• color: blue
• color: violet
• color: gold
• color: silver
• color: black
• color: blanc
• size and price, please choose: please choose
• size and price, please choose: M4x10 (+1,61 EUR)
• size and price, please choose: M4x15 (+1,67 EUR)
• size and price, please choose: M4x20 (+1,73 EUR)
• size and price, please choose: M4x30 (+1,84 EUR)
• size and price, please choose: M5x10 (+1,61 EUR)
• size and price, please choose: M5x12 (+1,67 EUR)
• size and price, please choose: M5x15 (+1,67 EUR)
• size and price, please choose: M5x20 (+1,73 EUR)
• size and price, please choose: M5x25 (+1,79 EUR)
• size and price, please choose: M5x30 (+1,84 EUR)
• size and price, please choose: M5x40 (+2,02 EUR)
• size and price, please choose: M5x60 (+2,56 EUR)
• size and price, please choose: M6x10 (+1,67 EUR)
• size and price, please choose: M6x12 (+1,73 EUR)
• size and price, please choose: M6x15 (+1,70 EUR)
• size and price, please choose: M6x20 (+1,73 EUR)
• size and price, please choose: M6x25 (+1,79 EUR)
• size and price, please choose: M6x30 (+1,84 EUR)
• size and price, please choose: M6x35 (+1,90 EUR)
• size and price, please choose: M6x40 (+2,02 EUR)
• size and price, please choose: M6x45 (+2,20 EUR)
• size and price, please choose: M6x50 (+2,32 EUR)
• size and price, please choose: M6x55 (+2,44 EUR)
• size and price, please choose: M6x60 (+2,56 EUR)
• size and price, please choose: M6x65 (+2,74 EUR)
• size and price, please choose: M6x70 (+2,86 EUR)
• size and price, please choose: M6x75 (+2,98 EUR)
• size and price, please choose: M6x80 (+3,21 EUR)
• size and price, please choose: M6x90 (+3,69 EUR)
• size and price, please choose: M6x130 (+6,55 EUR)
• size and price, please choose: M8x15 (+2,38 EUR)
• size and price, please choose: M8x20 (+2,50 EUR)
• size and price, please choose: M8x25 (+2,56 EUR)
• size and price, please choose: M8x30 (+2,62 EUR)
• size and price, please choose: M8x35 (+2,74 EUR)
• size and price, please choose: M8x40 (+2,86 EUR)
• size and price, please choose: M8x45 (+2,98 EUR)
• size and price, please choose: M8x50 (+3,09 EUR)
• size and price, please choose: M8x60 (+3,45 EUR)
• size and price, please choose: M8x70 (+3,81 EUR)
• size and price, please choose: M8x80 (+4,28 EUR)
• size and price, please choose: M8x100 (+5,89 EUR)
• size and price, please choose: M10x20 (+5,36 EUR)
• size and price, please choose: M10x25 (+5,47 EUR)
• size and price, please choose: M10x30 (+5,59 EUR)
• size and price, please choose: M10x35 (+5,68 EUR)
• size and price, please choose: M10x40 (+5,74 EUR)
• size and price, please choose: M10x45 (+5,95 EUR)
• size and price, please choose: M10x50 (+6,10 EUR)
• size and price, please choose: M10x60 (+6,57 EUR)
• size and price, please choose: M10x1,25x20 (+5,36 EUR)
• size and price, please choose: M10x1,25x25 (+5,47 EUR)
• size and price, please choose: M10x1,25x30 (+5,59 EUR)
• size and price, please choose: M10x1,25x35 (+5,68 EUR)
• size and price, please choose: M10x1,25x40 (+5,74 EUR)
• size and price, please choose: M10x1,25x45 (+5,95 EUR)
• size and price, please choose: M10x1,25x50 (+6,10 EUR)
• size and price, please choose: M10x1,25x60 (+6,57 EUR)

Price:

from 0,00 EUR

19 % VAT incl. excl. Shipping costs
