Titan (Ti6Al4V) - TFD - DIN 7984 - specialcolors

Manufacturer:
www.jaeger-schrauben.de

Allen head bolt
DIN 7984
similar DIN 6912 without a hole in the head

Material:
Ti6AI4V (Titan Grade 5)
rolled thread

Tensile strength:
930 - 1000 N/mm ²

Spanner size:
M4 = SW (Spanner size) 3
M5 = SW 4, M6 = SW 5
M8 = SW 6, M10 = SW 8

Head diameter:
M4 = 7 mm, M5 = 8,5 mm
M6 = 10 mm, M8 = 13 mm
M10 = 16 mm

height of head:
M4 = 2,7mm
M5 = 3,4 mm
M6 = 4mm
M8 = 5 mm
M10 = 6,5 mm

With chamfer 1,50 Euro surcharge (no exchange)

Prices:
The prices listed here include all surcharges.
Titan we offer in the following color variations:

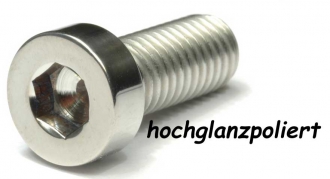

polished (15% surcharge)

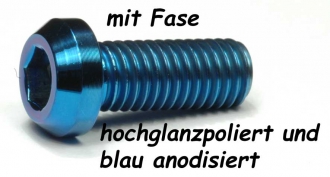

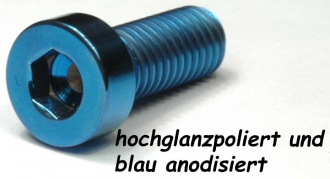

polished and blue anodized (15% surcharge)

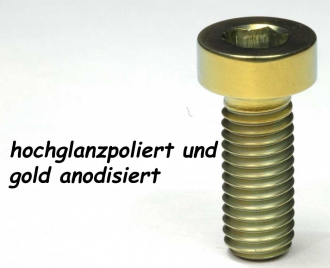

polished and gold anodized (15% surcharge)

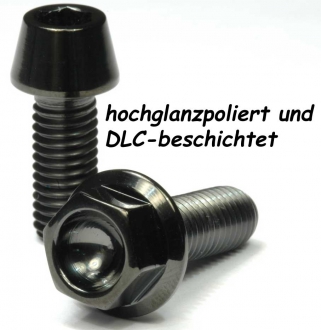

polished and black DLC coated (15% surcharge + 3,50€)

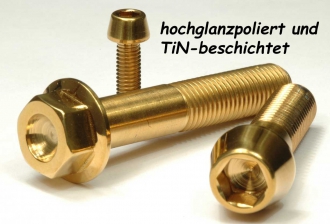

polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.

Ausschluss bzw. vorzeitiges Erlöschen des Widerrufsrechts
Das Widerrufsrecht besteht nicht bei Verträgen zur Lieferung von Waren, die nicht vorgefertigt sind und für deren Herstellung eine individuelle Auswahl oder Bestimmung durch den Verbraucher maßgeblich ist, oder die eindeutig auf die persönlichen Bedürfnisse des Verbrauchers zugeschnitten sind.

The screws can be shortened from a length of around 35mm and cost 1.79 euros extra per screw.
In the "size and price" selection, select "shorten screws" at the very bottom and tell us under "Remarks" when completing the order which screws should be shortened. The thread of the screws is so long that it is usually not a problem to shorten them to a different size, otherwise ask specifically.
No exchange!

Other dimensions on request

Options:

• color: please choose
• color: polished
• color: polished and blue anodized
• color: polished and gold anodized
• color: polished and black DLC coated ! delivery-time ! (+3,50 EUR)
• color: polished and gold TiN coated ! delivery-time ! (+2,50 EUR)
• size and price, please choose: please choose
• size and price, please choose: M4x10 (+8,17 EUR)
• size and price, please choose: M4x15 (+8,67 EUR)
• size and price, please choose: M4x20 (+9,15 EUR)
• size and price, please choose: M4x25 (+9,72 EUR)
• size and price, please choose: M4x30 (+10,17 EUR)
• size and price, please choose: M4x40 (+10,87 EUR)
• size and price, please choose: M4x50 (+11,86 EUR)
• size and price, please choose: M5x10 (+8,41 EUR)
• size and price, please choose: M5x15 (+9,35 EUR)
• size and price, please choose: M5x20 (+9,74 EUR)
• size and price, please choose: M5x25 (+10,20 EUR)
• size and price, please choose: M5x35 (+11,10 EUR)
• size and price, please choose: M5x45 (+11,79 EUR)
• size and price, please choose: M6x10 (+9,96 EUR)
• size and price, please choose: M6x15 (+10,27 EUR)
• size and price, please choose: M6x18 (+10,73 EUR)
• size and price, please choose: M6x20 (+10,73 EUR)
• size and price, please choose: M6x25 (+11,16 EUR)
• size and price, please choose: M6x30 (+11,67 EUR)
• size and price, please choose: M6x35 (+12,02 EUR)
• size and price, please choose: M6x40 (+12,37 EUR)
• size and price, please choose: M6x45 (+12,82 EUR)
• size and price, please choose: M6x50 (+13,54 EUR)
• size and price, please choose: M6x70 (+15,87 EUR)
• size and price, please choose: M8x15 (+12,66 EUR)
• size and price, please choose: M8x20 (+13,75 EUR)
• size and price, please choose: M8x25 (+14,46 EUR)
• size and price, please choose: M8x30 (+15,27 EUR)
• size and price, please choose: M8x35 (+16,18 EUR)
• size and price, please choose: M8x40 (+17,55 EUR)
• size and price, please choose: M8x45 (+17,72 EUR)
• size and price, please choose: M8x50 (+18,56 EUR)
• size and price, please choose: M8x70 (+21,78 EUR)
• size and price, please choose: M10x20 (+17,71 EUR)
• size and price, please choose: M10x25 (+18,94 EUR)
• size and price, please choose: M10x30 (+20,11 EUR)
• size and price, please choose: M10x35 (+21,15 EUR)
• size and price, please choose: M10x40 (+22,31 EUR)
• size and price, please choose: M10x50 (+24,91 EUR)
• size and price, please choose: M10x60 (+26,69 EUR)
• size and price, please choose: M10x1,25x20 (+17,71 EUR)
• size and price, please choose: M10x1,25x25 (+18,94 EUR)
• size and price, please choose: M10x1,25x30 (+20,11 EUR)
• size and price, please choose: M10x1,25x35 (+21,15 EUR)
• size and price, please choose: M10x1,25x40 (+22,31 EUR)
• size and price, please choose: M10x1,25x50 (+24,91 EUR)
• size and price, please choose: M10x1,25x60 (+26,69 EUR)
• size and price, please choose: shorten screws (from 35mm) (+1,79 EUR)
• option: please choose
• option: without chamfer
• option: with chamfer (+1,50 EUR)

Price:

from 0,00 EUR

19 % VAT incl. excl. Shipping costs
