Products description
Manufacturer:
www.jaeger-schrauben.de
Material:
Ti-6AI-4V
Tensile strength:
930 - 1000 N/mm ²
At the time of ordering under ramarks please specify the model and year
Sehr hilfreich auch diese Seite, hier finden Sie viele Maße:
RealOEM.com - Select Your BMW Model
Spanner size:
M12 = SW17
M14 = SW19, M16 = SW22
M18 = SW27, M20 = SW27
M22 = SW32, M24 = SW32
M25 = SW32
Washerdiameter:
M12 = 24mm, M14 = 27,5mm
M16 = 29 mm, M18 = 33mm
M20 = 33mm, M22 = 38mm
M24 = 39mm, M25 = 39mm
hight:
M12 = 11mm, M14 = 12mm
M16 = 13mm, M18 = 13mm
M20 = 13mm, M22 = 13mm
M24 = 13mm, M25 = 13mm
Prices:
The prices listed here include all surcharges.

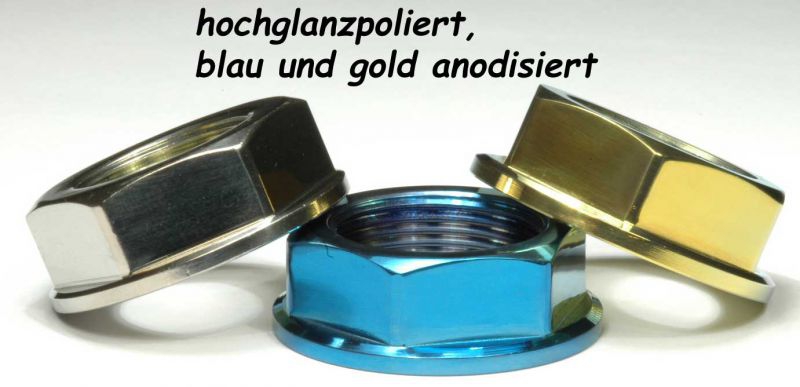

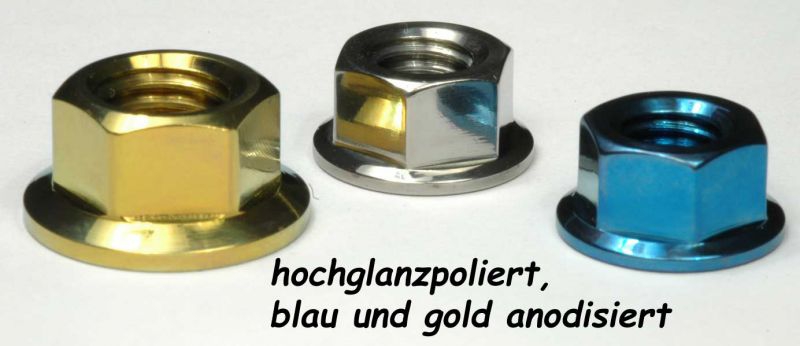

Titan we offer in the following color variations:

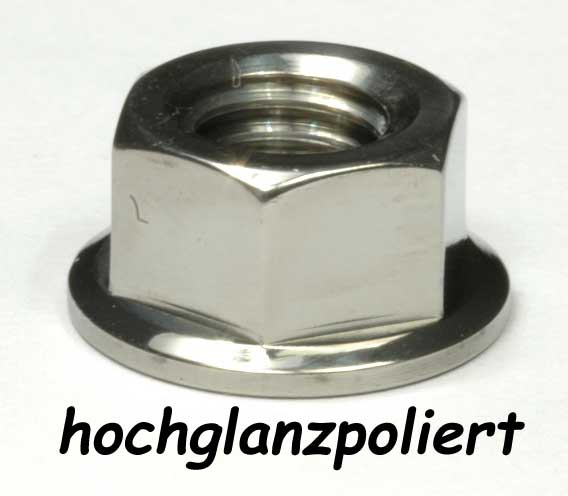

polished (15% surcharge)

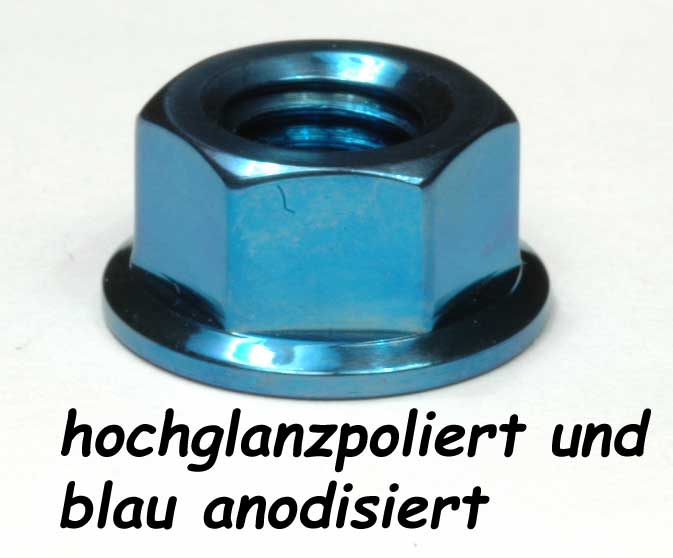

polished and blue anodized (15% surcharge)

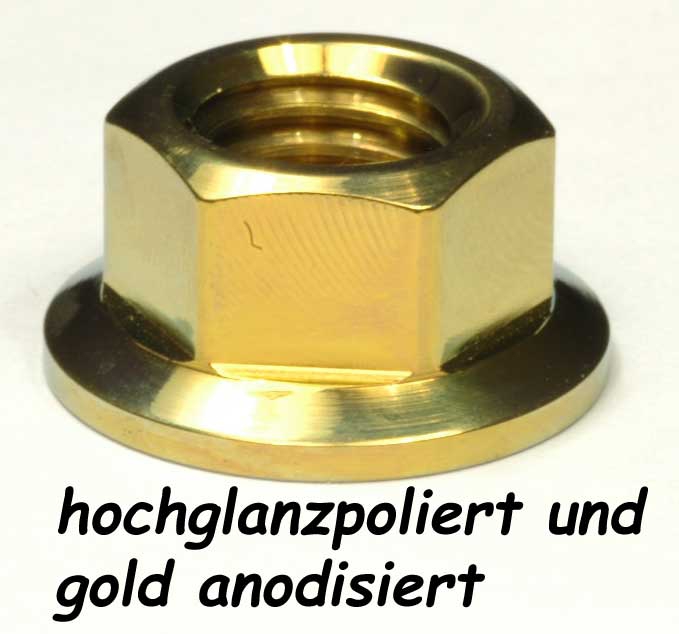

polished and gold anodized (15% surcharge)

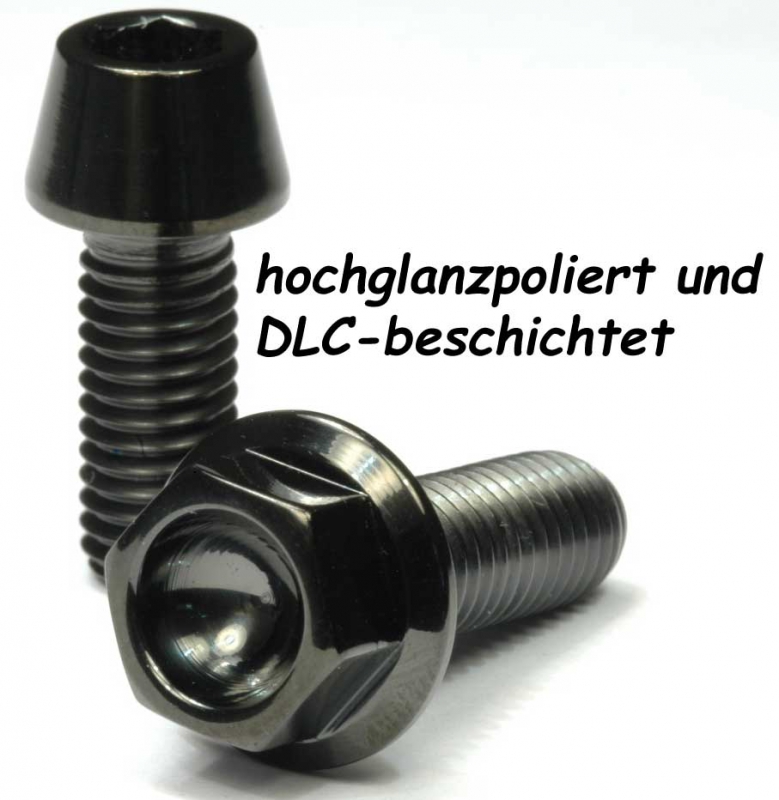

polished and black DLC coated (15% surcharge + 3,50€)

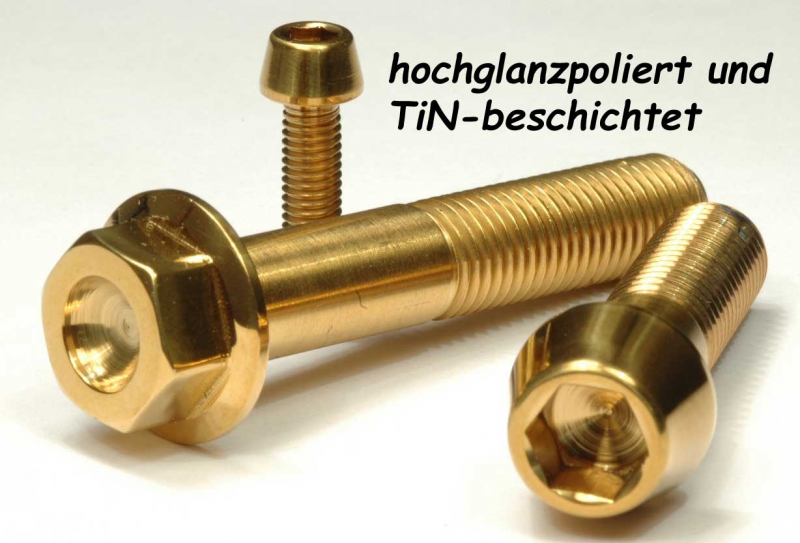

polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)
Prices for titanium nature you will find under this Link [ click here ]
We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.
Ausschluss bzw. vorzeitiges Erlöschen des Widerrufsrechts
Das Widerrufsrecht besteht nicht bei Verträgen zur Lieferung von Waren, die nicht vorgefertigt sind und für deren Herstellung eine individuelle Auswahl oder Bestimmung durch den Verbraucher maßgeblich ist, oder die eindeutig auf die persönlichen Bedürfnisse des Verbrauchers zugeschnitten sind.
Other dimensions on request
