Titan (Ti6Al4V) - brake discs kits specialcolors

Manufacturer:
www.jaeger-schrauben.de

Brake disc screws for motorcycles

Material:
Ti6AI4V (Titan Grade 5)
rolled thread

Tensile strength:
930 - 1000 N/mm ²

Take a look at the pictures and compare them with the dimensions of the original screw.
Spare parts numbers / OEM numbers below

BS-22  BMW / 5x M8x20 / front / Torx 40
BS-23  BMW / 6x M8x20 / front / Torx 40

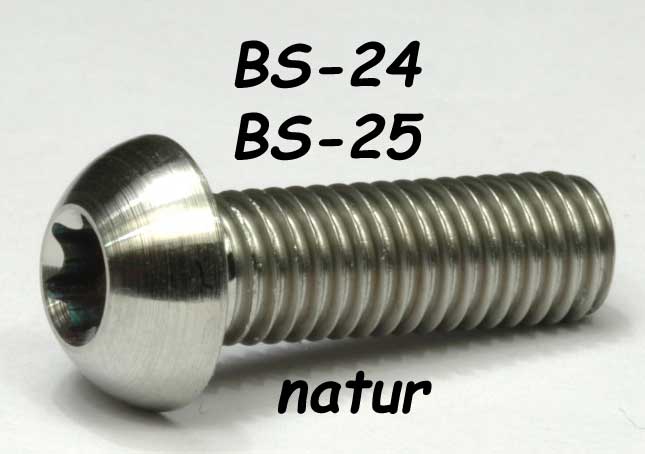

BS-24  BMW / 5x M8x25 / front / Torx 40
BS-25  BMW / 6x M8x25 / front / Torx 40

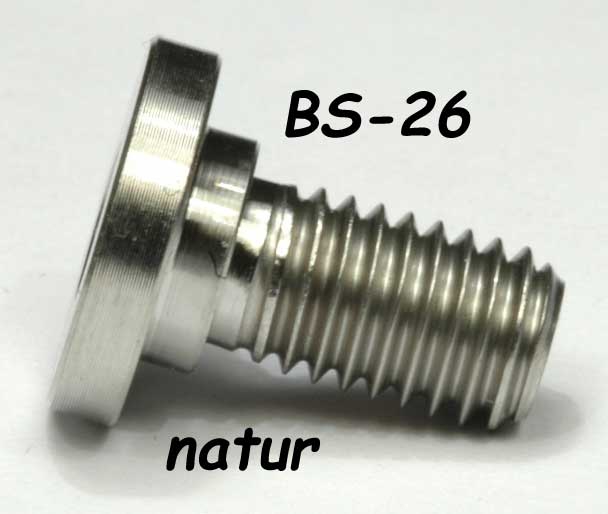

BS-26  BMW / 5x M8x16 /  rear / 2,5mm shank / Torx 40

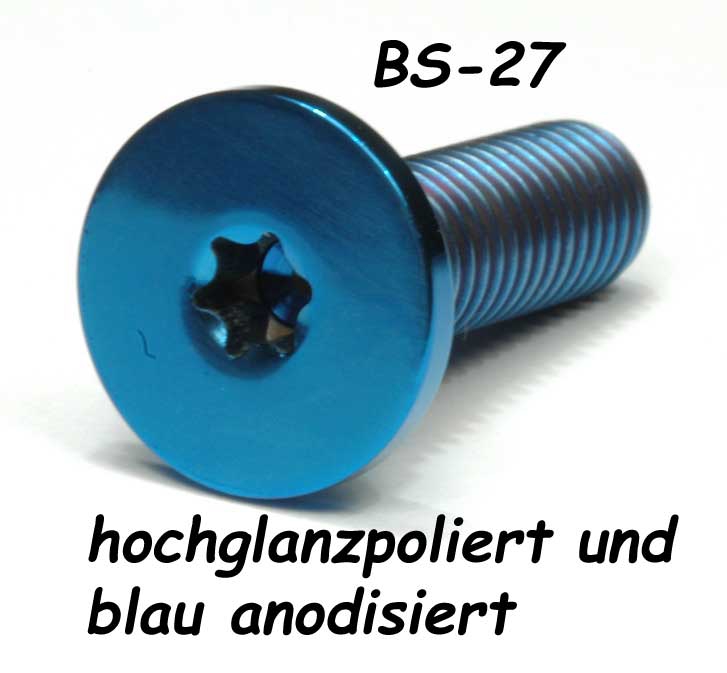

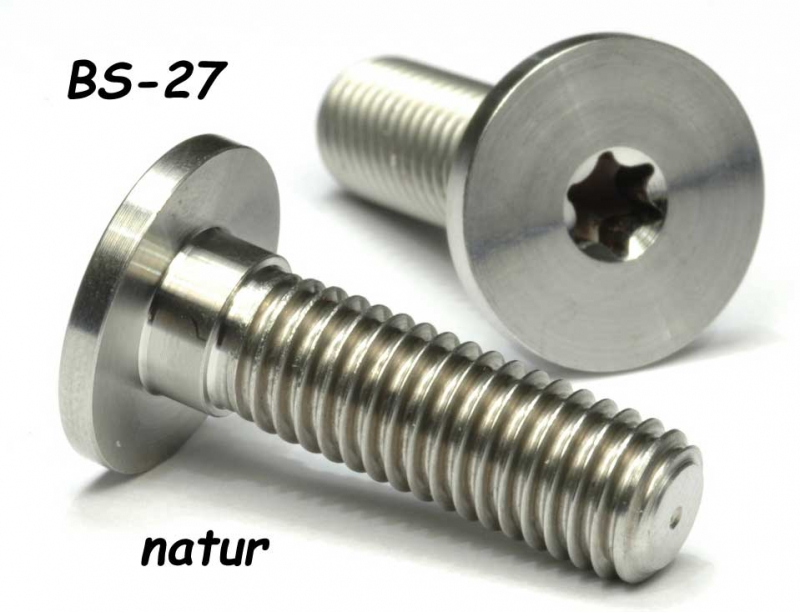

BS-27  BMW / e.g. S1000 / 5x M8x27 low head / with shank / Torx 30
BS-39  BMW / e.g. S1000 / 6x M8x27 low head / with shank / Torx 30

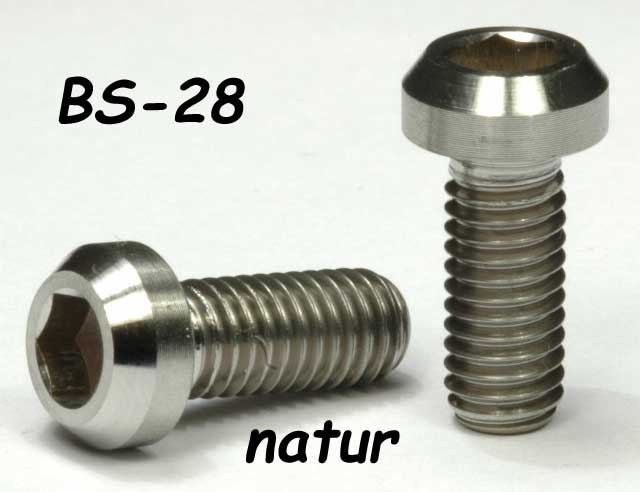

BS-28  BMW S1000 / rear / 5x TFD M6x18 with chamfer / hexagon socket

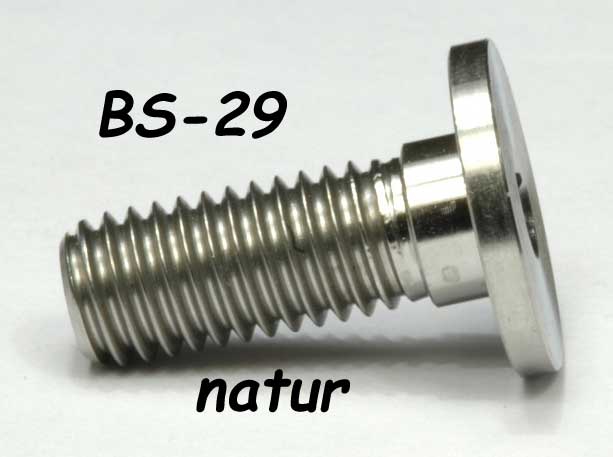

BS-29  BMW / 5x M8x21  low head / Torx 30

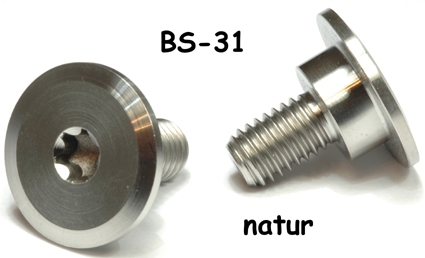

BS-31  BMW / 5x M8x20 HP2 / front / low head 22mm /Torx 40

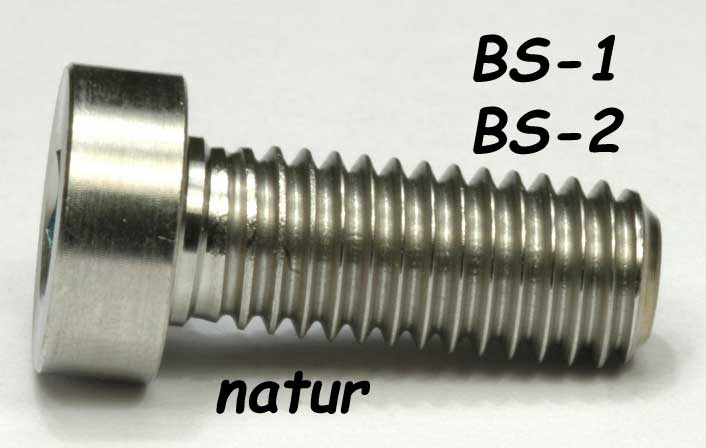

BS-1  Ducati / 5x M8x20 allen head bolt / hexagon socket
BS-2  Ducati / 6x M8x20 allen head bolt / hexagon socket
BS-32 Ducati / 4x M8x20 / Torx 40

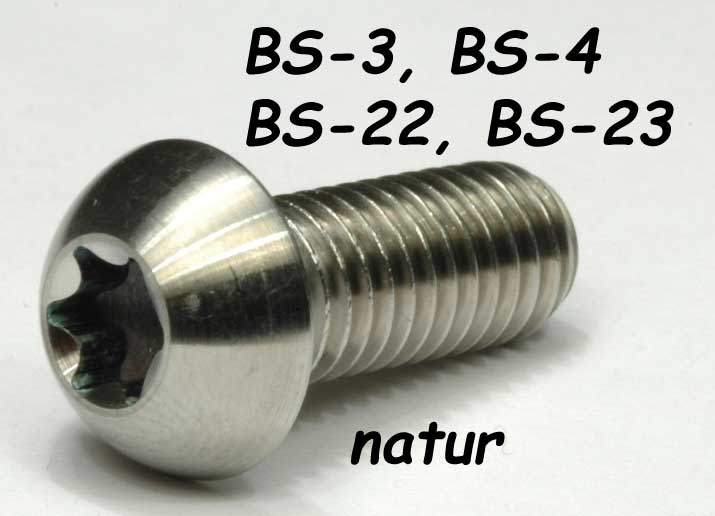

BS-3  Ducati / 5x M8x20 / Torx 40
BS-4  Ducati / 6x M8x20 / Torx 4

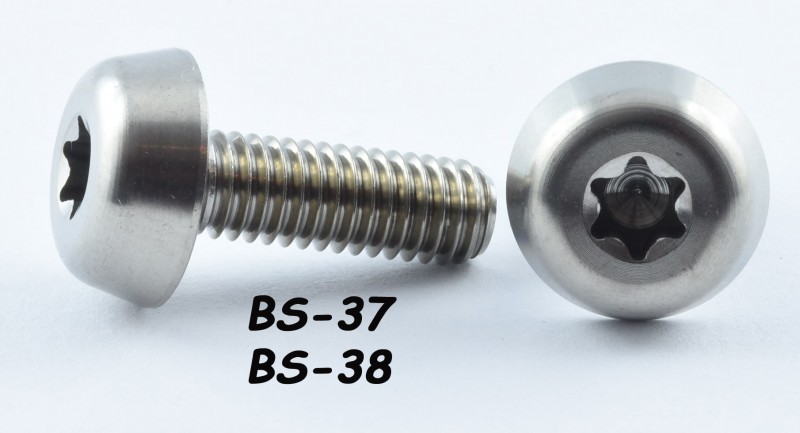

BS-37 Honda / 5x M6x18 / allen cheese head 14mm / Torx 30
BS-38 Honda / 6x M6x18 / allen cheese head 14mm / Torx 30
BS-34 Honda front / 5x M6x17 allen cheese head 15mm / hexagon socket

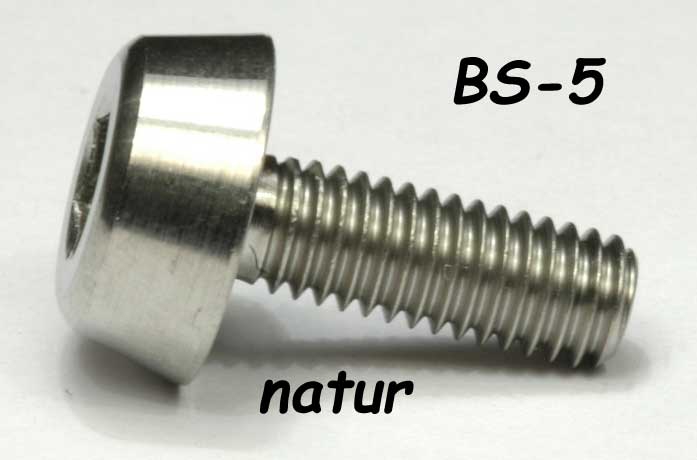

BS-5  Honda front / 6x M6x17  allen cheese head 15 mm / hexagon socket
BS-6  Honda  rear / 4x M8x24 low head 16mm, 6mm shank / hexagon socket
BS-35 Honda rear / 5x M8x24 low head 16mm, 6mm shank / hexagon socket
BS-18 Honda / Yamaha R1 '04- / rear /4x  low head 16mm, 4,5mm shank / hexagon socket
BS-19 Honda / Yamaha R1 '04- / rear /5x  low head 16mm, 4,5mm shank / hexagon socket
BS-36 Honda / Yamaha R1 '04- / rear /6x  low head 16mm, 4,5mm shank / hexagon socket

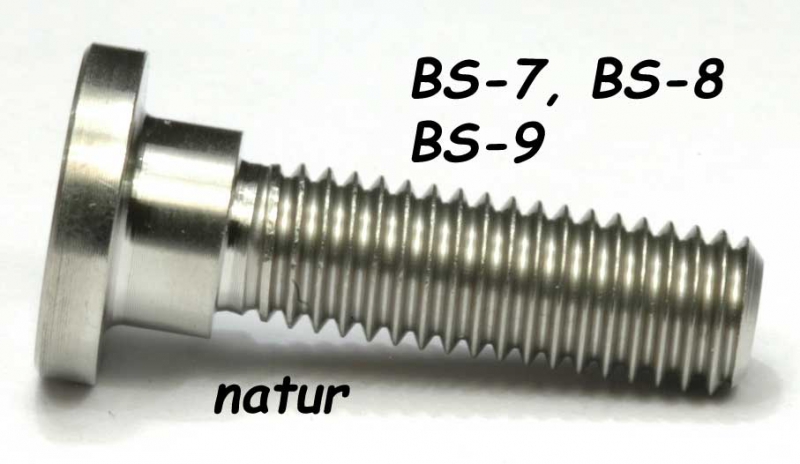

BS-7  Kawasaki/4x M8x30  low head 16mm, 5mm shank / hexagon socket
BS-8  Kawasaki/5x M8x30  low head 16mm, 5mm shank / hexagon socket
BS-9  Kawasaki/6x M8x30  low head 16mm, 5mm shank / hexagon socket
BS-33 KTM 6x M8x24 low head 16mm, 6mm shank / hexagon socket

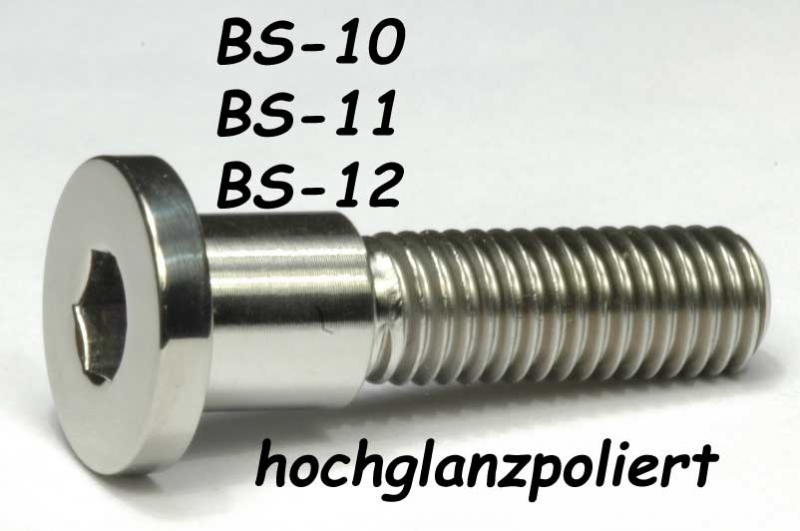

BS-10 Suzuki/4x M8x33  low head 16mm, 10mm shank / hexagon socket
BS-11  Suzuki/5x M8x33  low head 16mm, 10mm shank / hexagon socket
BS-12  Suzuki/6x M8x33  low head 16mm, 10mm shank / hexagon socket

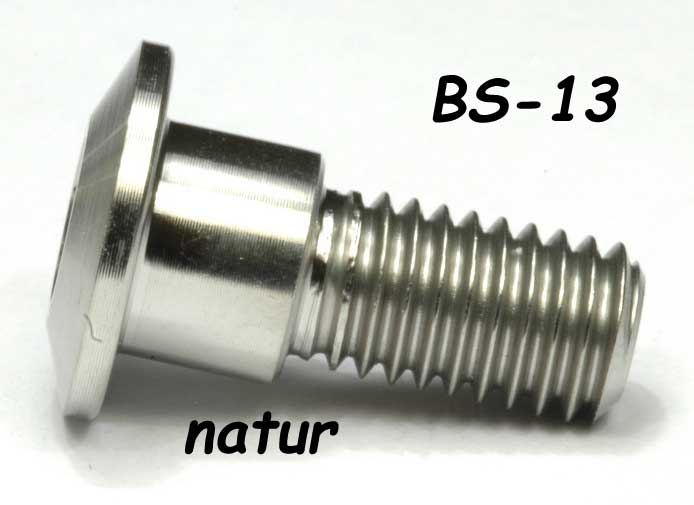

BS-13  Suzuki/5x M8x21  low head 16mm, 7 mm shank / hexagon socket
BS-30  Suzuki / K9- 6x M6x20, 6mm shank / hexagon socket

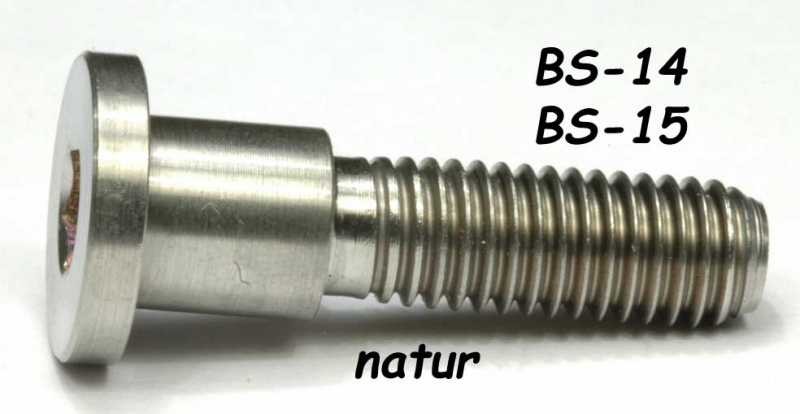

BS-14  Triumph/5x M8x30  low head 16mm, 10mm shank / hexagon socket
BS-15  Triumph/6x M8x30  low head 16mm, 10mm shank / hexagon socket

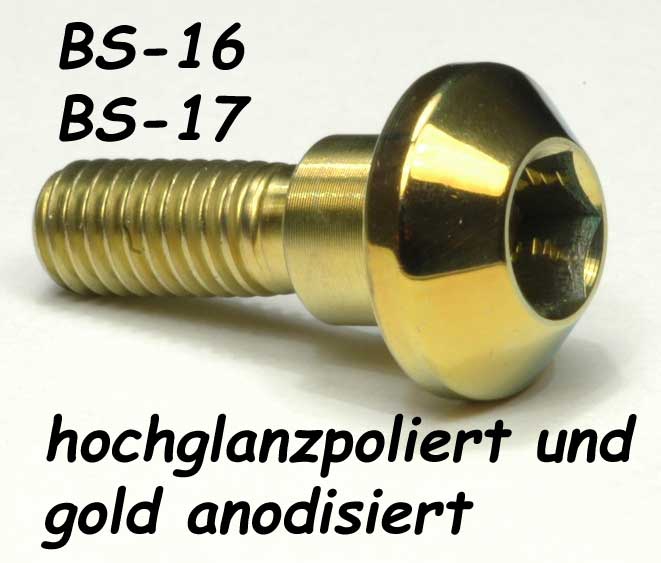

BS-16  Yamaha R1/R6 / 5x M6x20, 6mm shank / hexagon socket
BS-17  Yamaha R1/R6 / 6x M6x20, 6mm shank / hexagon socket

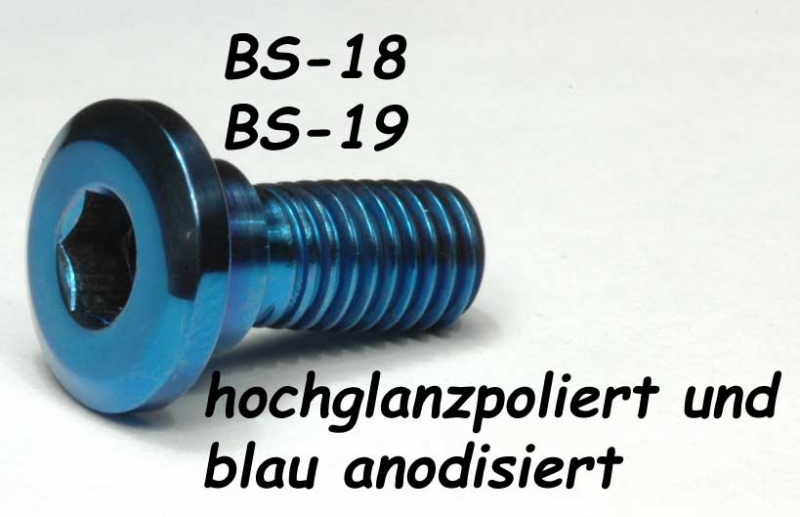

BS-18  Yamaha R1 '04- / Honda / rear /4x M8x20 low head 16mm, 4,5mm shank / hexagon socket
BS-19  Yamaha R1 '04- / Honda / rear /5x M8x20 low head 16mm, 4,5mm shank / hexagon socket
BS-36  Yamaha R1 '04- / Honda / rear /6x M8x20 low head 16mm, 4,5mm shank / hexagon socket

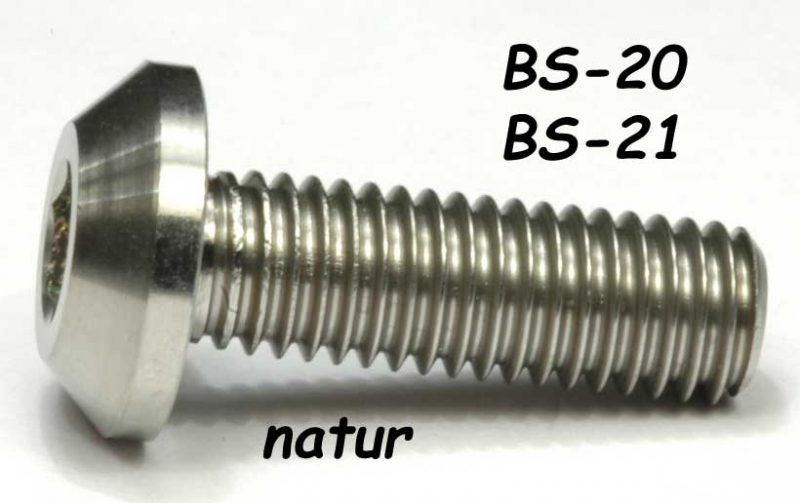

BS-20  Yamaha / 5x M8x25 allen cheese head 16mm / hexagon socket
BS-21  Yamaha / 6x M8x25 allen cheese head 16mm / hexagon socket

Prices:
Prices for one disc.
The prices listed here include all surcharges.

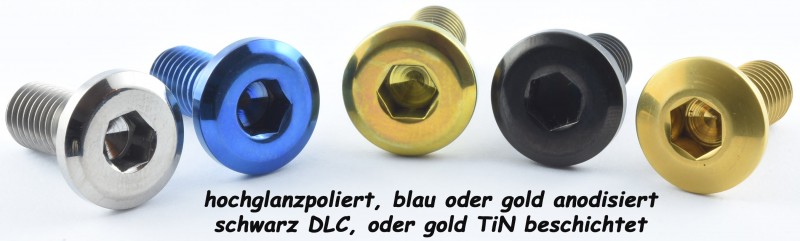

Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)

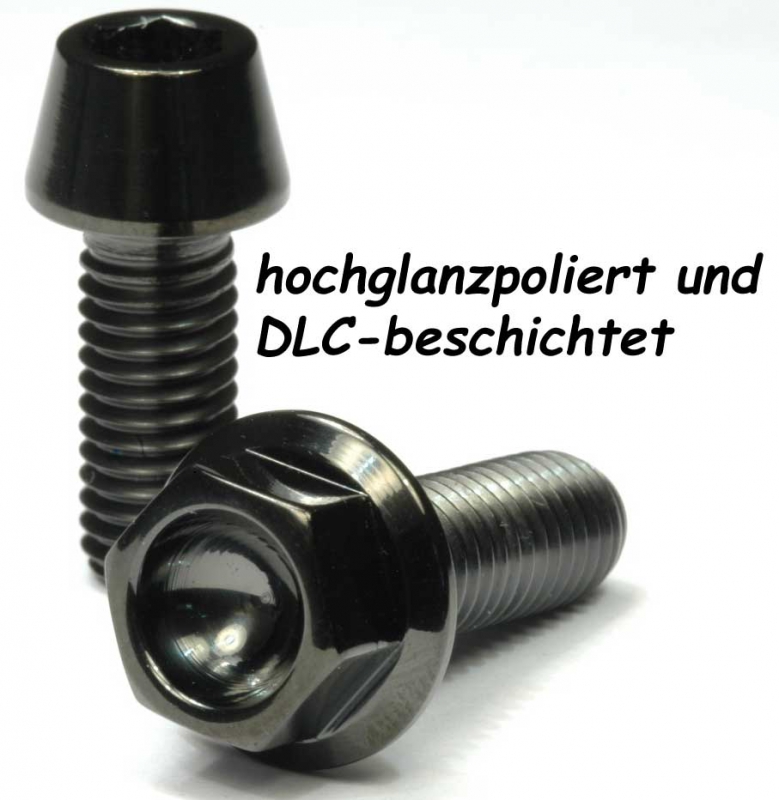

polished and black DLC coated (15% surcharge + 3,50€)

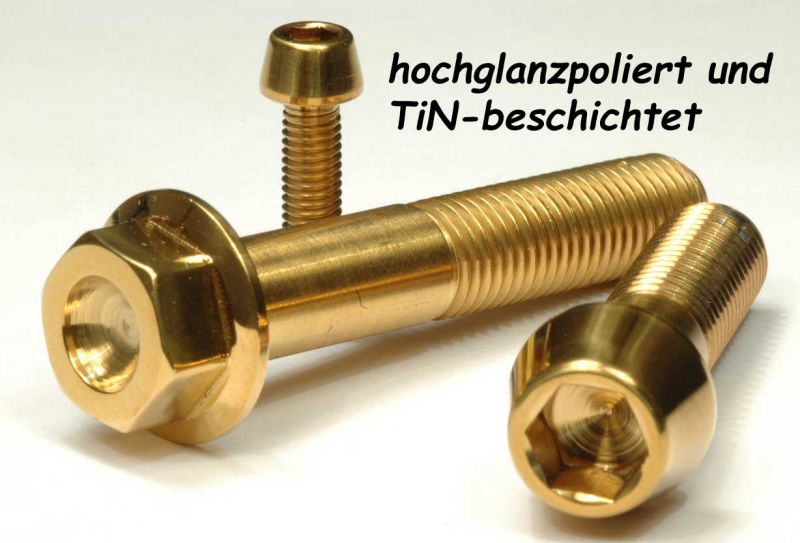

polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.

Ausschluss bzw. vorzeitiges Erlöschen des Widerrufsrechts
Das Widerrufsrecht besteht nicht bei Verträgen zur Lieferung von Waren, die nicht vorgefertigt sind und für deren Herstellung eine individuelle Auswahl oder Bestimmung durch den Verbraucher maßgeblich ist, oder die eindeutig auf die persönlichen Bedürfnisse des Verbrauchers zugeschnitten sind.

Other dimensions on request

Here for comparison:
Spare parts numbers / OEM numbers:
BS-26, 33177709205, 34212331275, 34212314558
BS-27 / BS-39, 34117700989
BS-22 / BS-23, 34117713039, 34112330619,  46712331959
BS-24 / BS-25, 36317709543, 36311457803, 31421454619
BS-28, 34117709137
BS-29, 34117701390
BS-31, 36317690960
BS-1 bis BS-4 / BS-32, 707008320, 77351232B, 77913281A, 77913991A
BS-5 / BS-34, 90106-MBB-000, 90106MBB000, 90106-MT3-003, 90106-MJM-D30
BS-6 / BS-35, 90105-MV9-003, 90105MV9003, 90105-MBB-000, 90105MBB000
BS-37 / BS-38, 90105-MGC-000
BS-18 / BS-19 / BS-36, 90106-MGE-000, 90106MGE000
BS-7 / BS-8 / BS-9, 92154-1865, 921541865
BS-33, 90110062000
BS-10 / BS-11 / BS-12, 09106-08148-000, 9610608148, 0910608041000, 0910608062000, 0910608082000, 0910608125000
BS-13, 09106-08160-000, 0910608160000
BS-30, 09106-06124-000, 0910606124
BS-14 / BS-15, T2023233, T2020609
BS-16 / BS-17, 90149-06045, 9014906045, 90109-064G6-00, 90149-06043, 9014906043
BS-18 / BS-19 / BS-36, 90149-08009-00, 90149-08010-00, 90149-08010, 901490800900, 901490801000
BS-20 / BS-21, 90111-08057, 0109-083G400, 90111-08083-00
