Titan (Ti6Al4V) - brake pad pin specialcolors

Manufacturer:
www.jaeger-schrauben.de

Material:
Ti-6AI-4V
rolled thread

Tensile strength:
930 - 1000 N/mm ²

Specified length is always measured complete with head, e.g. for M10x1x48 = 48mm

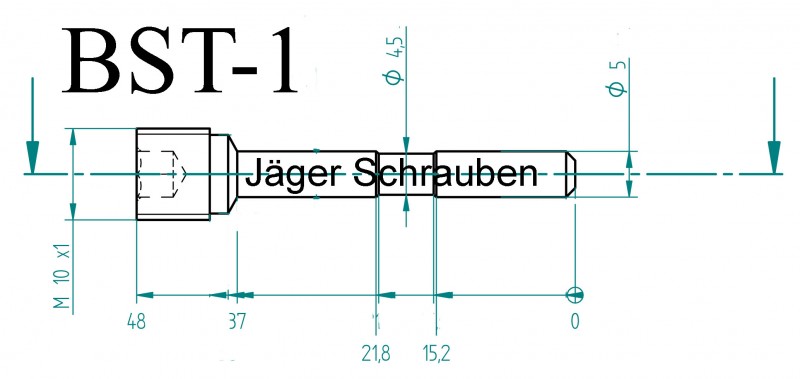

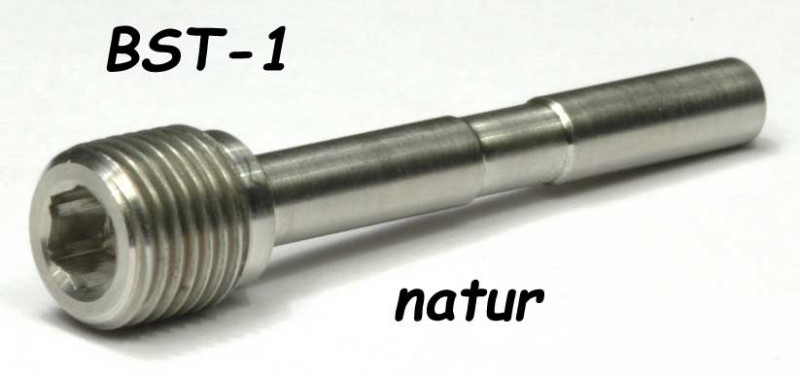

BST-1  M10x1x48 (e.g. for Nissin-caliper Honda/Kawasaki)
Bolt length 37mm, bolt diameter 5mm
with turnover of 4,5mm which is about 6mm wide

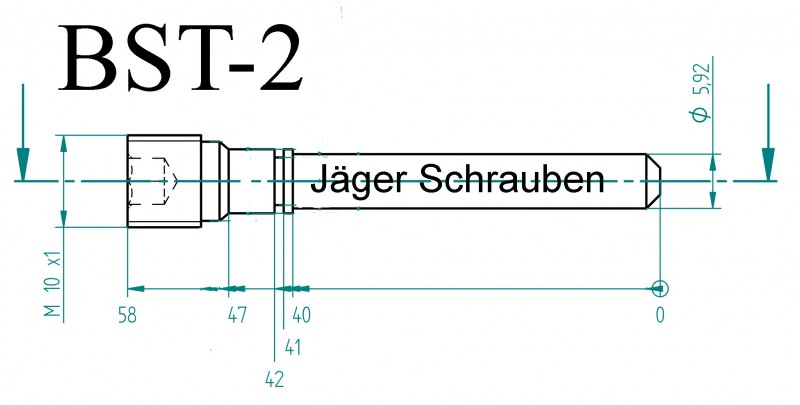

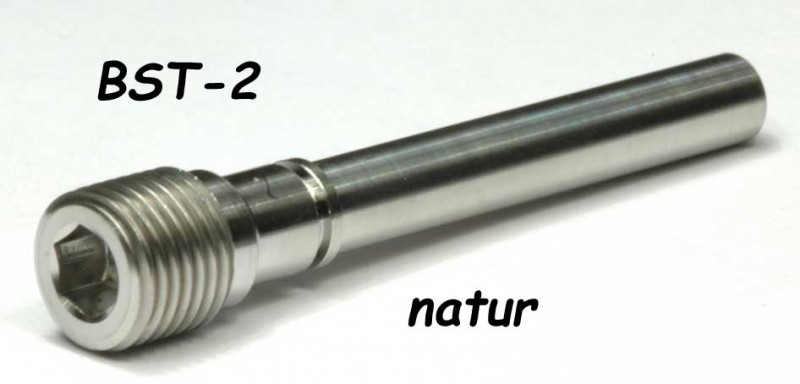

BST-2  M10x1x58 (e.g. for BMW-caliper)
Bolt length 74mm, bolt diameter 5,9mm
just below the head 8,6mm with a groove for a locking clip

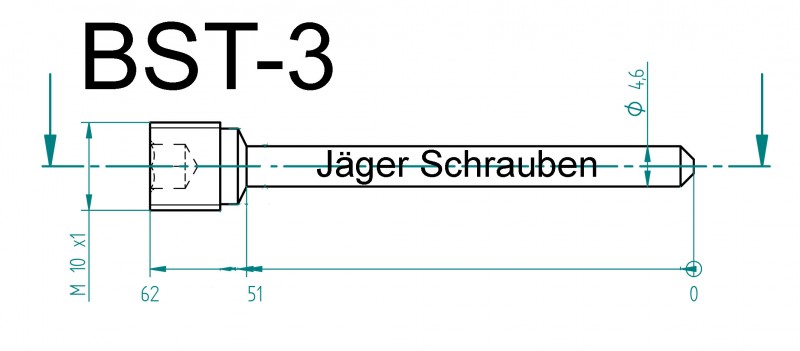

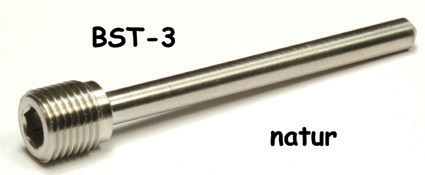

BST-3  M10x1x62 (e.g. for Nissin-caliper Honda/Kawasaki)
Bolt legth 51mm, bolt diameter 4,6mm

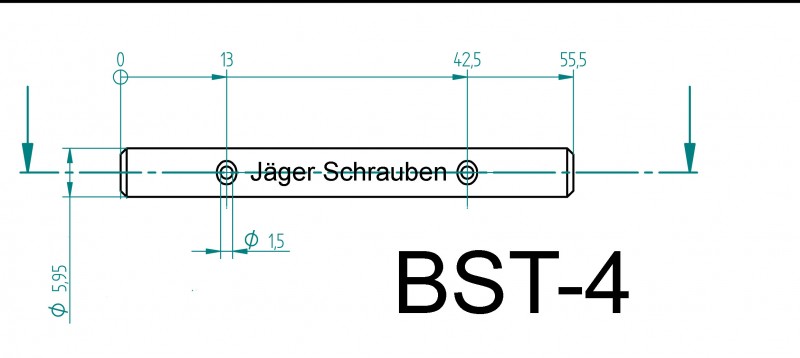

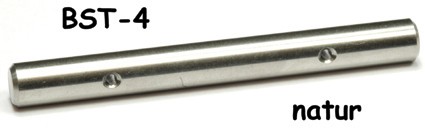

BST-4  pin, length 55,5mm, diameter 5,95mm (e.g. for Yamaha-caliper)
with 2 holes of 1,5mm, 13mm from each end of the bolt

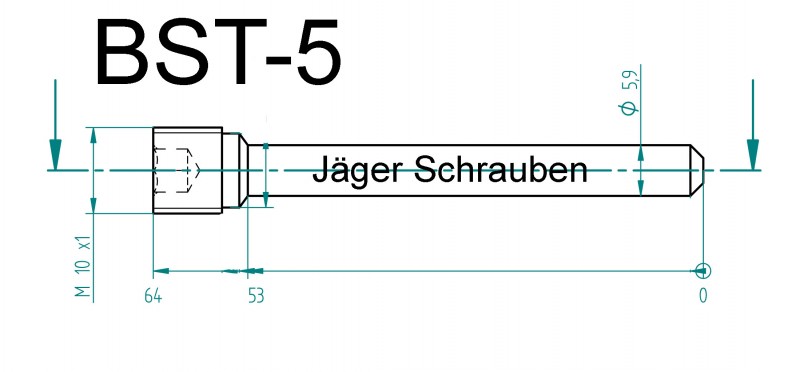

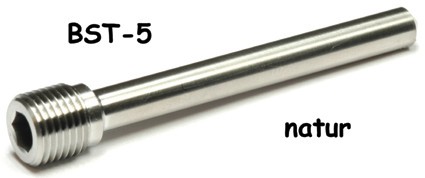

BST-5 M10x1x64
Bolt legth 53mm, bolt diameter 5,9mm

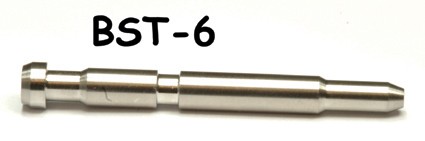

BST-6 pin, lenght 48mm, for Brembo-caliper P4 34/34
e.g. for Aprilia, Benelli, Bimota, Cagiva, Ducati, Husqvarna, KTM, Moto Guzzi, MV, Triumph

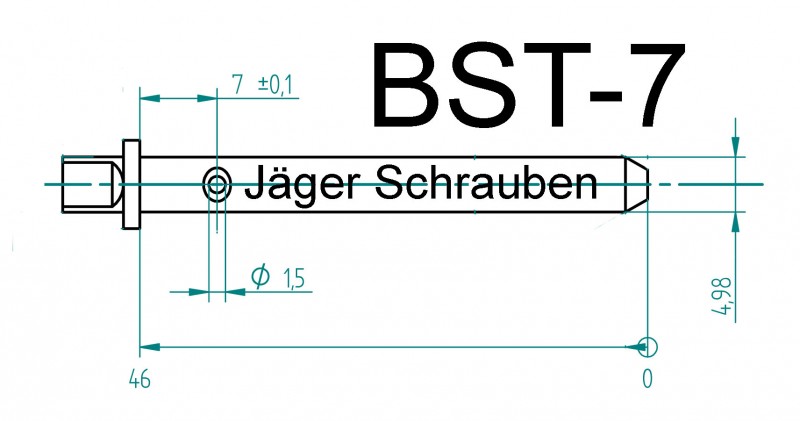

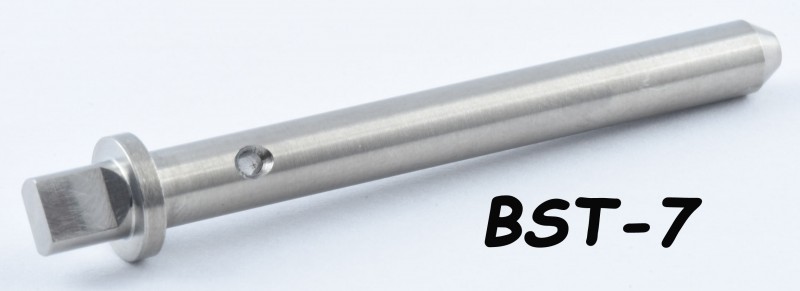

BST-7 pin, lenght 46mm, for Brembo-caliper P4 30/34 F / P4 30/34 CNC
e.g. for Aprilia, Benelli, Bimota, Cagiva, Ducati, Husqvarna, KTM, Moto Guzzi, MV, Triumph

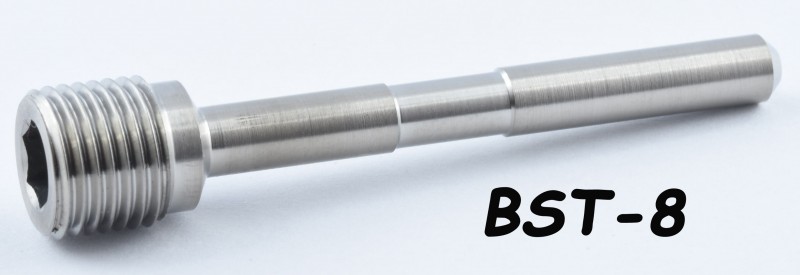

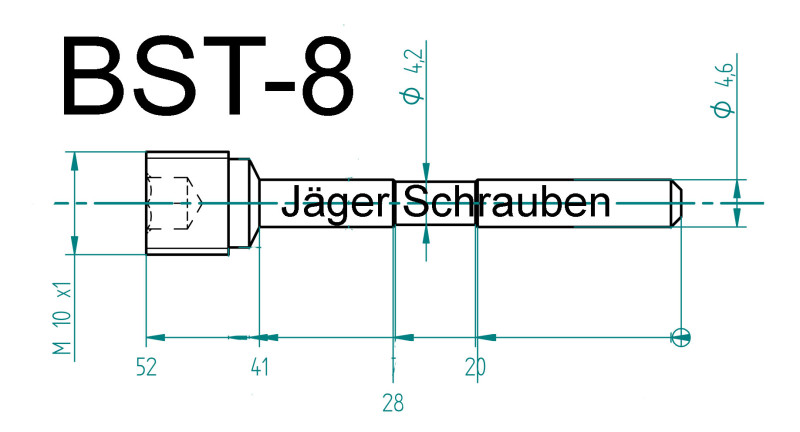

BST-8  M10x1x52 (e.g. for Tokico-caliper Honda/Kawasaki/Suzuki)
Bolt legth 41mm, bolt diameter 4,6mm

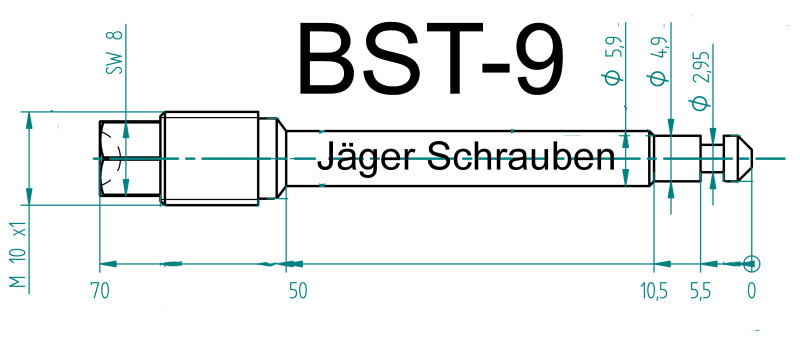

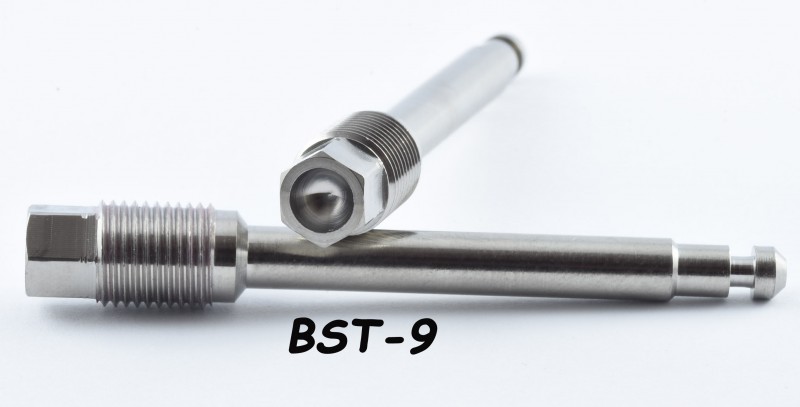

BST-9  M10x1x70 (e.g. for Nissin-Zange, Honda Crosstourer)
Bolt legth 50mm, bolt diameter 5,9mm

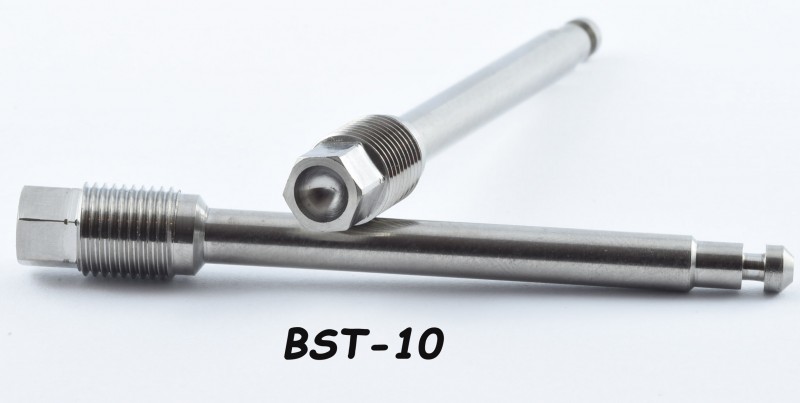

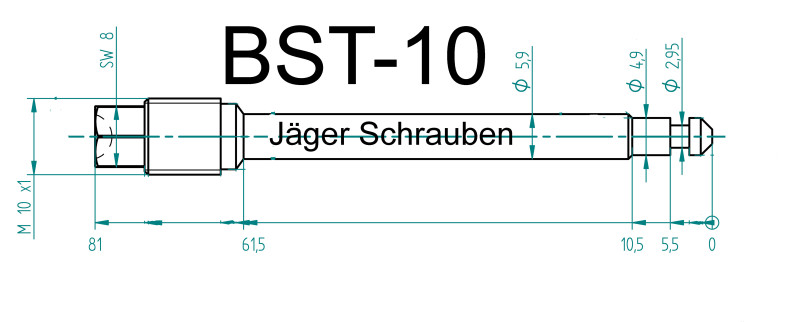

BST-10  M10x1x81 (e.g. for Nissin-Zange, Honda Crosstourer)
Bolt legth 62mm, bolt diameter 5,9mm

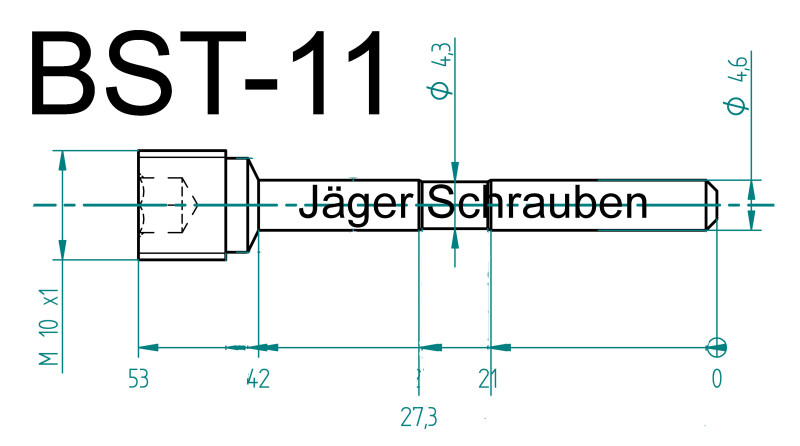

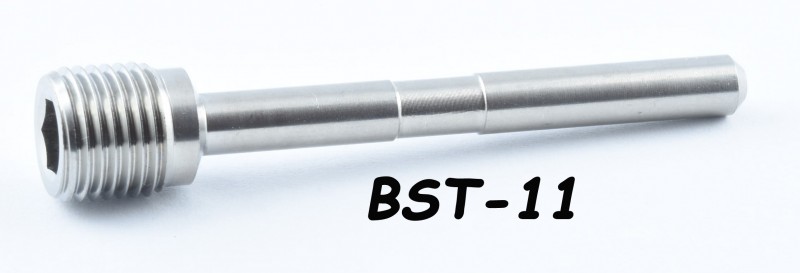

BST-11  M10x1x53 (e.g. for Tokico-caliper Honda/Kawasaki)
Bolt length 42mm, bolt diameter 4,6mm
with turnover of 4,3mm which is about 6mm wide

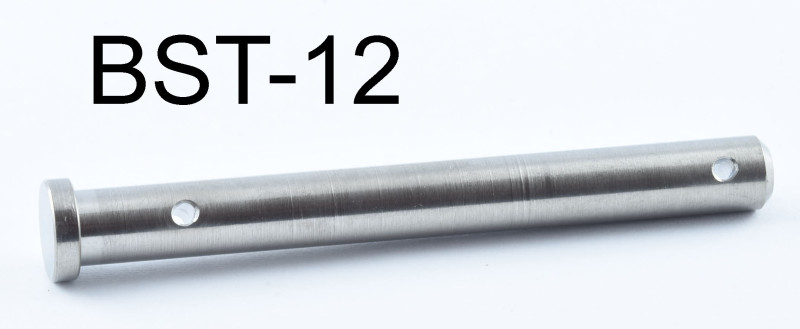

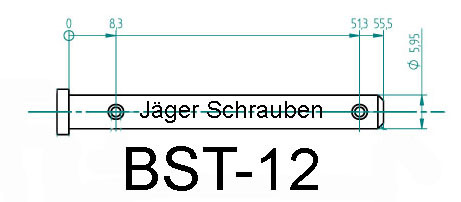

BST-12  pin, lenght 55,5mm, diameter 5,95mm (e.g. for BMW 1200 GS)
mit 2 holes of 1,7mm

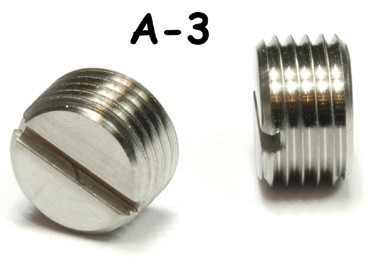

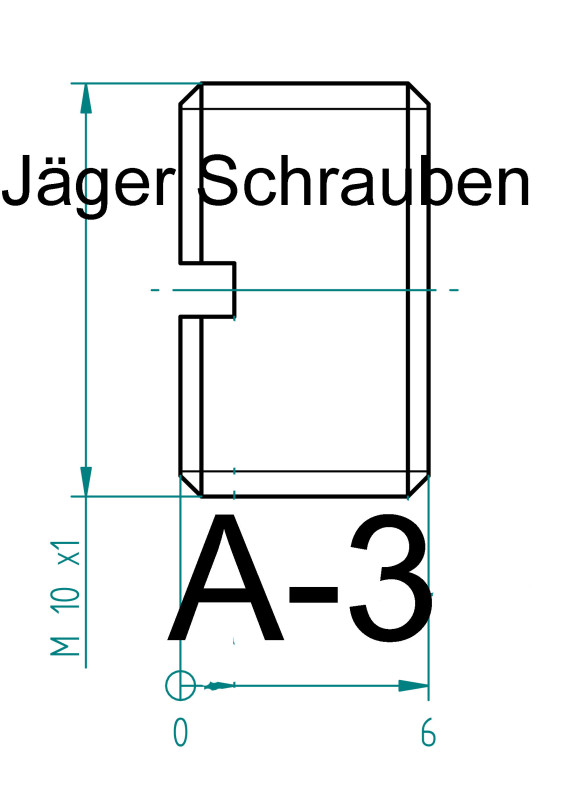

A-3 pin bolt caliper M10x1 (e.g. Nissin caliper / Yamaha)
high 6mm

Prices:
The prices listed here include all surcharges.
Titan we offer in the following color variations:
polished (15% surcharge)

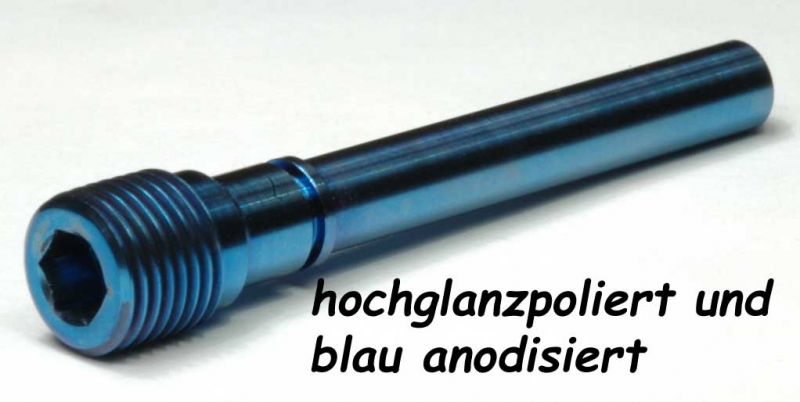

polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)

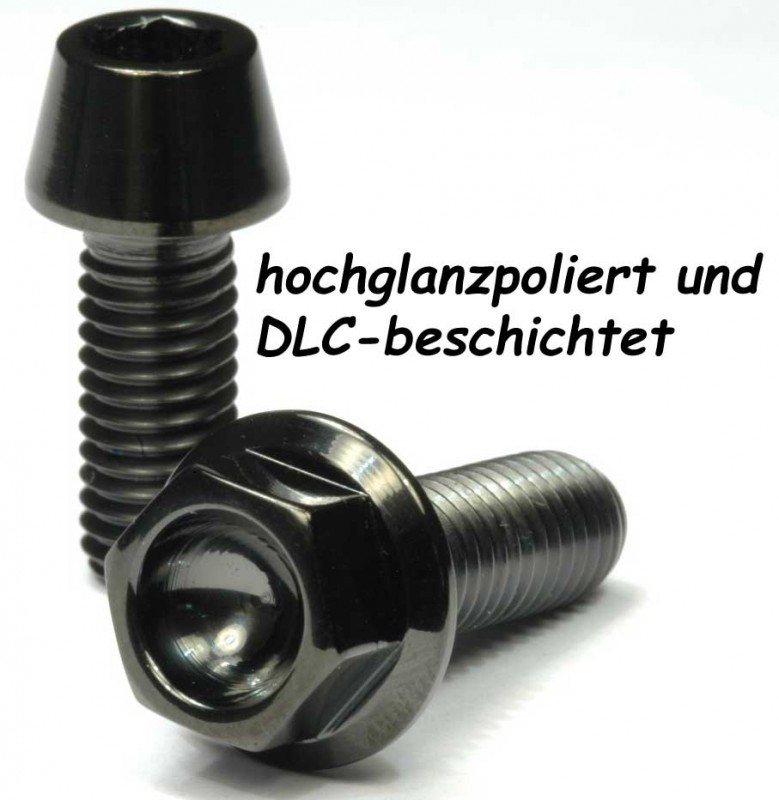

polished and black DLC coated (15% surcharge + 3,50€)

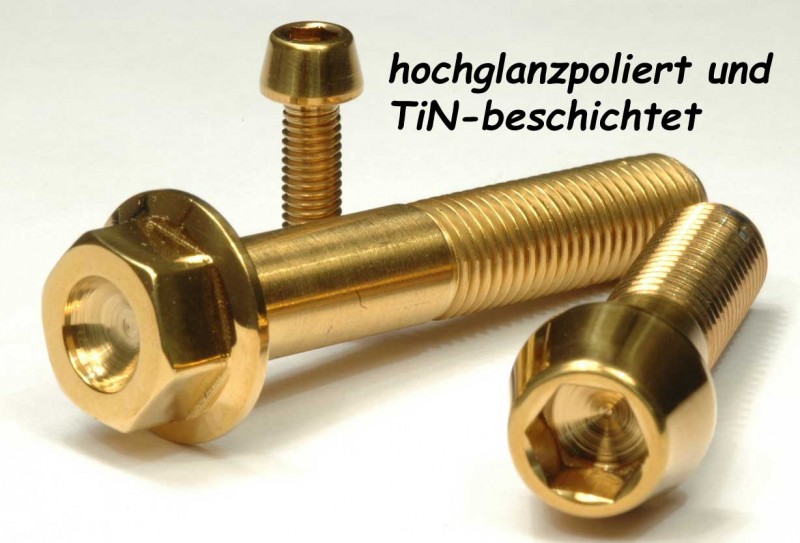

polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.

Ausschluss bzw. vorzeitiges Erlöschen des Widerrufsrechts
Das Widerrufsrecht besteht nicht bei Verträgen zur Lieferung von Waren, die nicht vorgefertigt sind und für deren Herstellung eine individuelle Auswahl oder Bestimmung durch den Verbraucher maßgeblich ist, oder die eindeutig auf die persönlichen Bedürfnisse des Verbrauchers zugeschnitten sind.

Other dimensions on request
