Manufacturer:
www.jaeger-schrauben.de

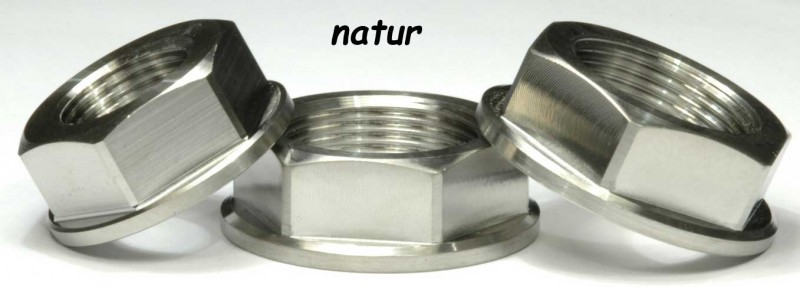

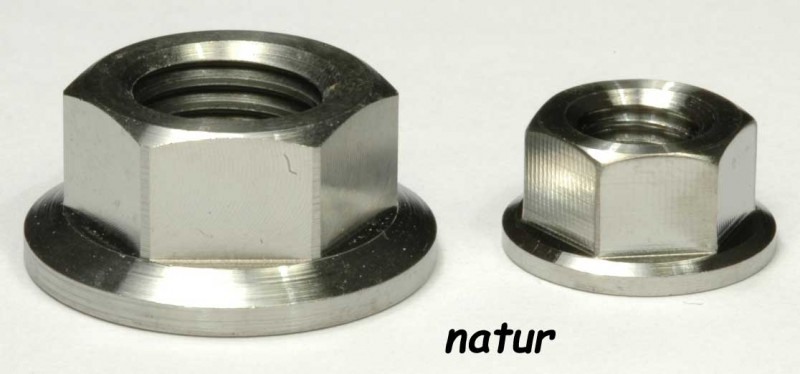

similar to ISO 4161 / alt DIN 6923
Material:
Ti-6AI-4V
Tensile strength:
930 - 1000 N/mm ²
Spanner size:
M4 = SW (Spanner size) 7
M5 = SW8, M6 = SW8
M7 = SW12, M8 = SW12
M10 = SW14, M12 = SW17
M14 = SW19, M16 = SW22
M18 = SW27, M20 = SW27
M22 = SW32, M24 = SW32
M25 = SW32
Washerdiameter:
M4 = 10mm, M5 = 11mm
M6 = 13mm, M7 = 16mm
M8 = 16mm, M10 = 20mm
M12 = 24mm, M14 = 27,5mm
M16 = 29 mm, M18 = 33mm
M20 = 33mm, M22 = 38mm
M24 = 39mm, M25 = 39mm
hight:
M4 = 4mm, M5 = 5mm
M6 = 6mm, M7 = 8mm
M8 = 8mm, M10 = 10mm
M12 = 11mm, M14 = 12mm
M16 = 13mm, M18 = 13mm
M20 = 13mm, M22 = 13mm
M24 = 13mm, M25 = 13mm
Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50€)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)
These can you found under this Link[ click here ]
We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.
Other dimensions on request
