M-1 to M-12 Titan (Ti6Al4V) nature

Manufacturer:
www.jaeger-schrauben.de

bolts for the suspension
for Cannondale, Rocky Mountain and other

Material:
Ti-6Al-4V

Tensile strength:
930 - 1000 N / mm²

Dimension:

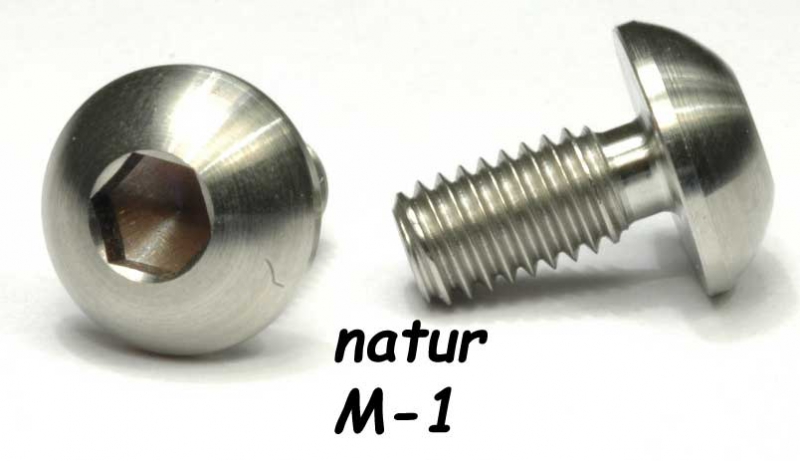

M-1 / M6x12 TRM hexagon socket head screw/head diameter 13 mm/length 12 mm/
Mass: 2,3 g

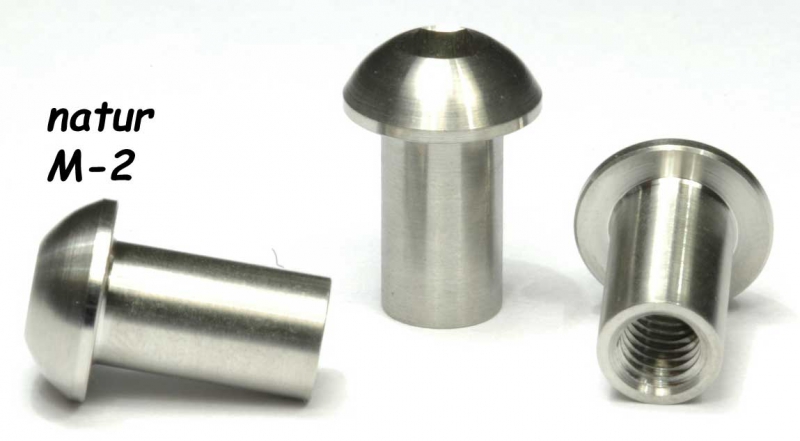

M-2 / Truss head screw with pin 8mm diameter (lengthens 14 mm) and M6 internal thread/Ti6AI4V. They need still 1 screw TRM
Mass: 2,9 g

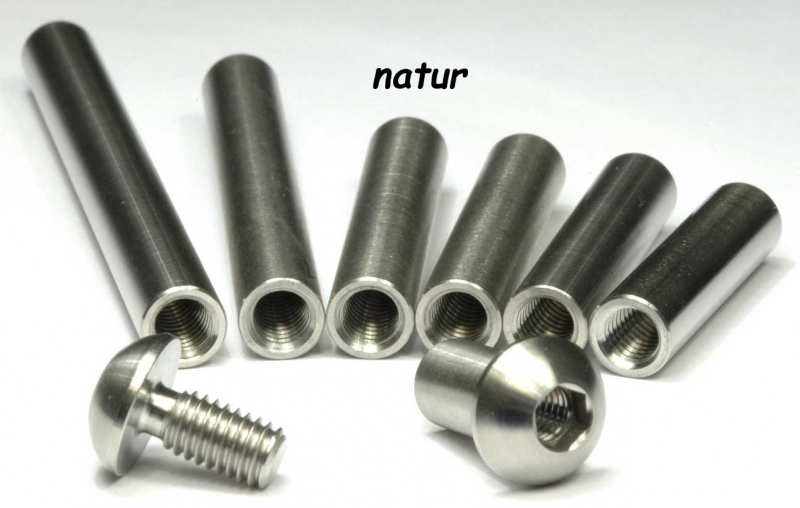

Dimension bolts:
M-3 / length 31 mm / diameter 8mm / Mass: 3,5g
M-4 / length 35 mm / diameter 8mm / Mass: 4,2g
M-5 / length 36 mm / diameter 8mm / Mass: 4,5g
M-6 / length 40 mm / diameter 8mm / Mass: 5,4g
M-7 / length 44 mm / diameter 8mm / Mass: 6,3g
M-8 / length 64 mm / diameter 8mm / Mass: 10,4g
M-9 / length 79 mm / diameter 8mm / Mass: 14g
M-10 / length 47 mm / diameter 8mm /  Mass: 6,6g
M-11 / length 67 mm / diameter 8mm / Mass: 11g
M-12 / length 84 mm / diameter 8mm / Mass: 14,8g

Note:
Into the pins only the screws indicated above fit.
TRL screws from our standard offer do not fit.
These cannot be clean-turned up to the head

Individual pins with internal thread M6 at each side.
They need then still 2 screws each M-1 (TRM)

Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50 €)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50 €)
These can you found under this Link[ click here ]

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.
