Titan (Ti6Al4V) - TRX - similar DIN 7380

Manufacturer:
www.jaeger-schrauben.de

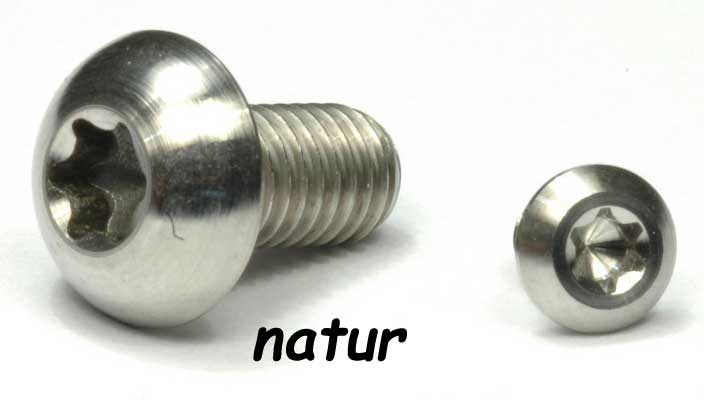

Torx - Lens head bolt
similar DIN 7380

Material:
Ti6AI4V (Titan Grade 5)
rolled thread
M3 cut thread

Tensile strength:
930 - 1000 N/mm ²

Spanner size:
M3 = T10
M5 = T25

Head diameter:

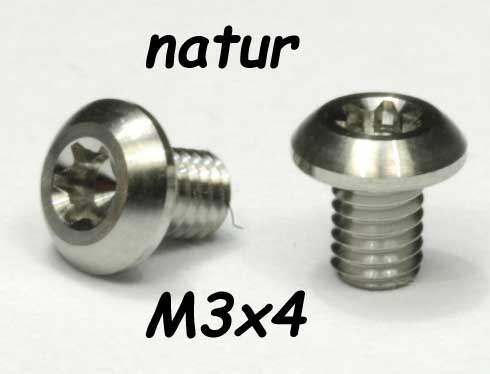

M3x4 = 5,6mm

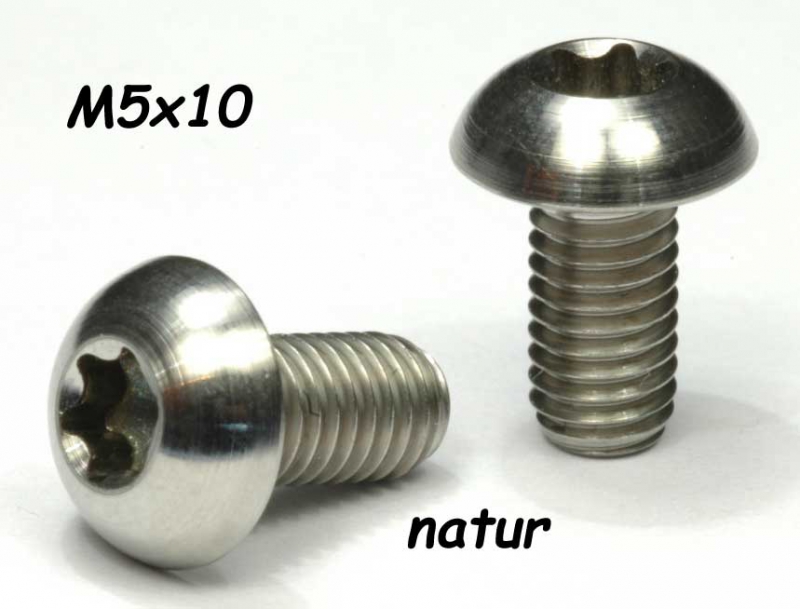

M5x10 = 10mm (Particularly for brake disks at the Mountainbike)

Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50€)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.

The screws can be shortened from a length of around 35mm and cost 1.79 euros extra per screw.
In the "size and price" selection, select "shorten screws" at the very bottom and tell us under "Remarks" when completing the order which screws should be shortened. The thread of the screws is so long that it is usually not a problem to shorten them to a different size, otherwise ask specifically.
No exchange!

Other dimensions on request
