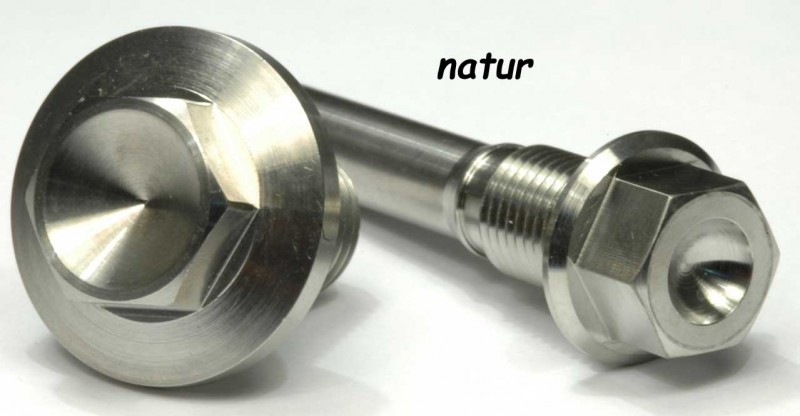

Titan (Ti6Al4V) - special bolts nature

Material:
Ti6AI4V (Titan Grade 5)
rolled thread

Tensile strength:
930 - 1000 N/mm ²

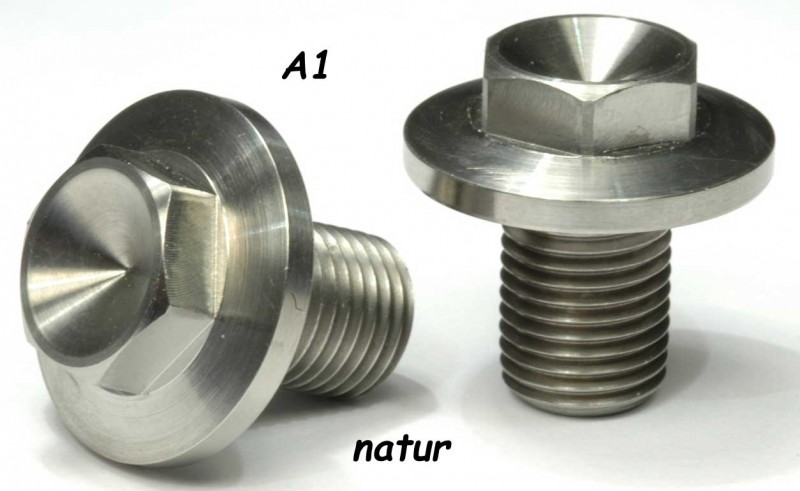

A-1 Yamaha R1 ´04- / almost all Honda models / BMW, axle bolt front / M14x1,5x20

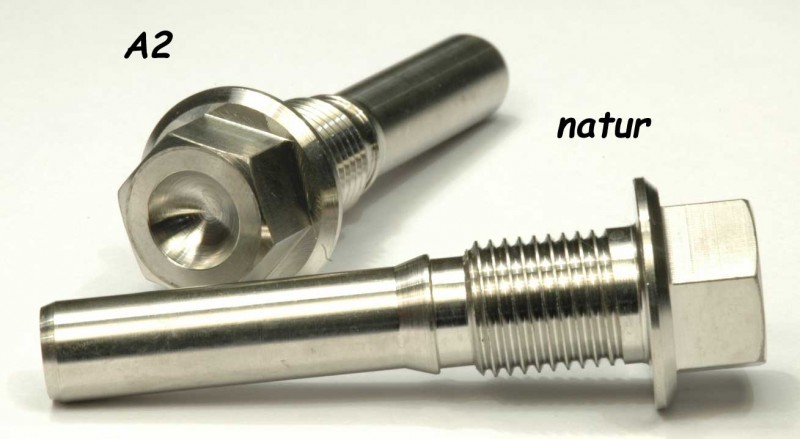

A-2 Yamaha R1 / R6, Honda CBR 1000 RR
(Nissin brake calipers bolt rear)

A-3 pin bolt caliper M10x1 (e.g. Nissin caliper / Yamaha)
high 6mm

Oil-7 / M22x1,5 / engine-drain plug / HP2 front wheel axle srew, allen head

Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50€)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.

Other dimensions on request

Cut of the screws from a lenght of approximately 35mm are possibile.
Cut per screw 1,79 Euro surcharge.
The thread for the screws is so long, that is usually no problem,  to manufacture any other measure.
Specifically request otherwise. No exchange!
