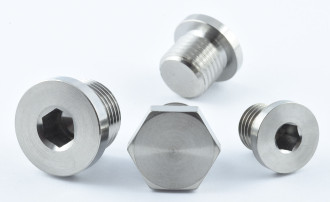

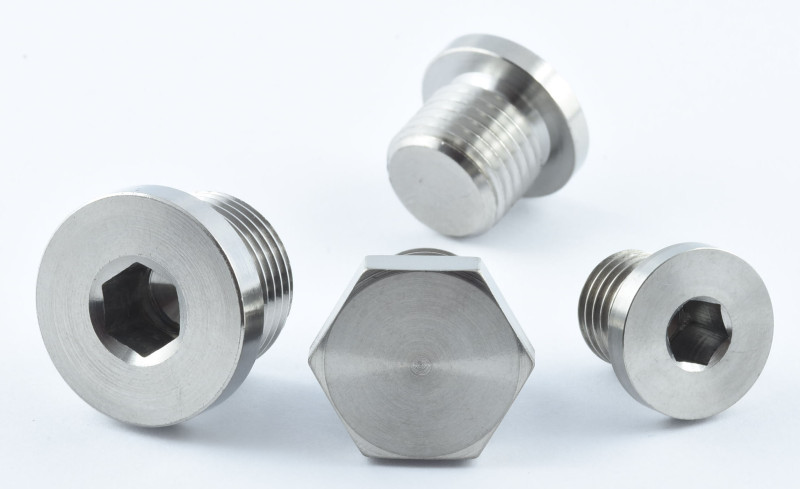

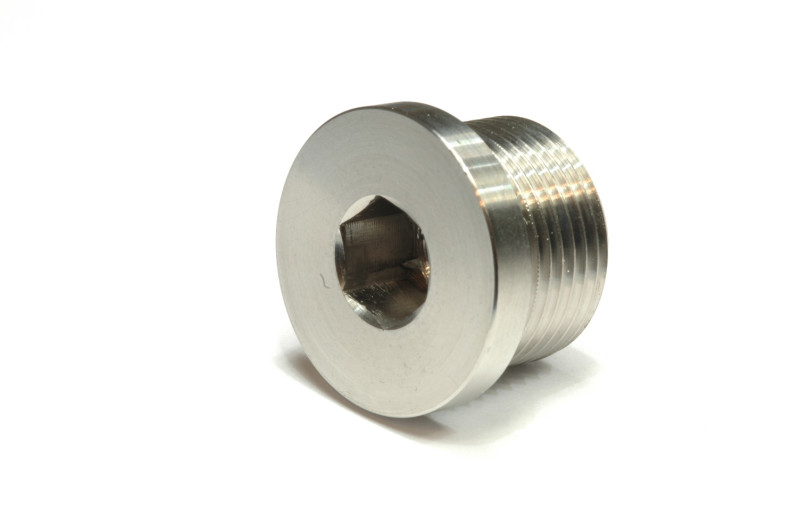

Titan (Ti6Al4V) - Oil fill plug / drain plug nature

Manufacturer:
www.jaeger-schrauben.de

Verschlußschrauben ähnlich DIN 908

Material:
Ti6AI4V (Titan Grade 5)

Tensile strength:
930 - 1000 N/mm ²

The designations here are for different BMW motorcycles, but can of course basically be used as screw plugs.
For example as a lambda probe screw plug.

Oil-1 / M14x1,5 / back axle oil-fill plug, allen head

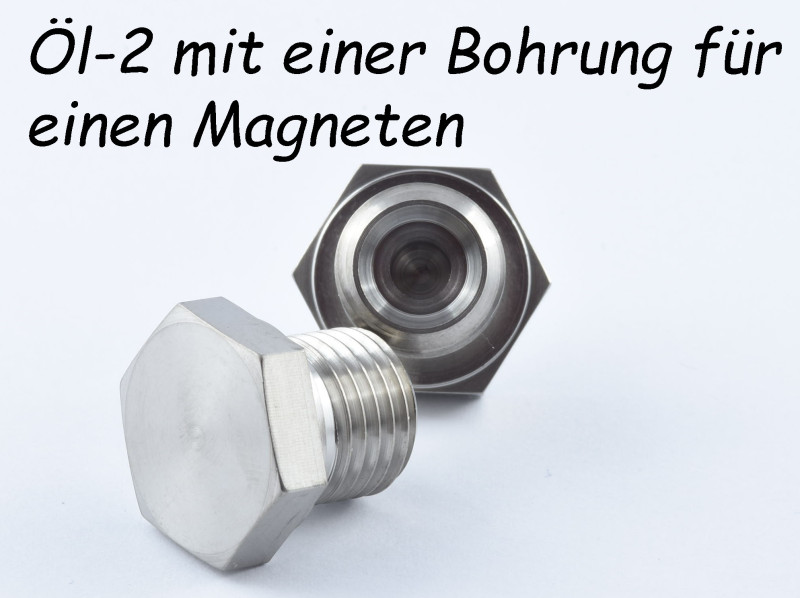

Oil-2 / M14x1,5 / bach axle oil-drain plug, hexagon, without magnet
Oil-3 / M18x1,5 / gear box oil-fill plug, allen head
Oil-4 / M18x1,5 / gear box oil-drain plug, allen head

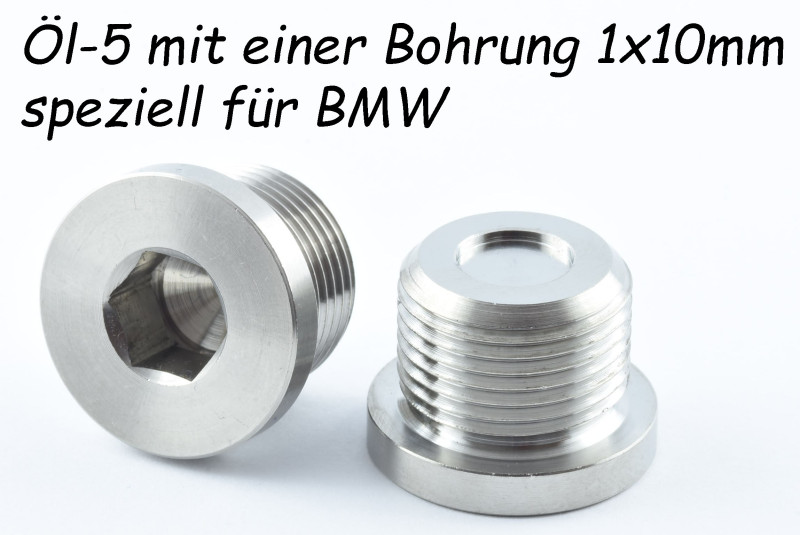

Oil-5 / M20x1,5 / engine-fill plug, allen head
Oil-6 / M16x1,5 / engine-drain plug, allen head
Oil-7 / M22x1,5 / engine-drain plug / HP2 front wheel axle srew, allen head
Öl-8 / M12x1,5 / back axle oil-fill plug, allen head

Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50€)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.
