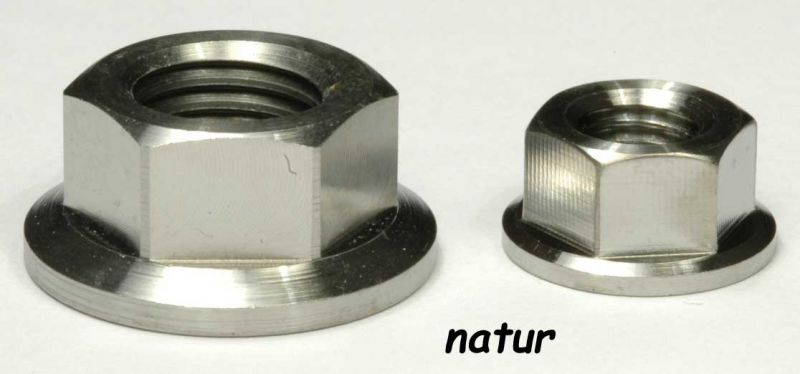

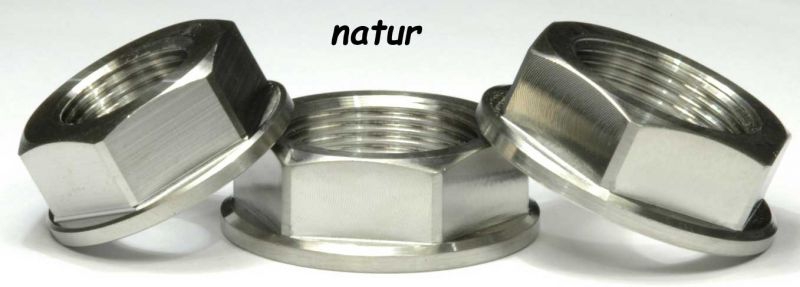

Titan (Ti6Al4V) - axle nuts nature

Manufacturer:
www.jaeger-schrauben.de

Material:
Ti-6AI-4V

Tensile strength:
930 - 1000 N/mm ²

At the time of ordering under ramarks please specify the model and year

Spanner size:
M12 = SW17
M14 = SW19, M16 = SW22
M18 = SW27, M20 = SW27
M22 = SW32, M24 = SW32
M25 = SW32

Washerdiameter:
M12 = 24mm, M14 = 27,5mm
M16 = 29 mm, M18 = 33mm
M20 = 33mm, M22 = 38mm
M24 = 39mm, M25 = 39mm

hight:
M12 = 11mm, M14 = 12mm
M16 = 13mm, M18 = 13mm
M20 = 13mm, M22 = 13mm
M24 = 13mm, M25 = 13mm

Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50€)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)
These can you found under this Link[ click here ]

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.

Other dimensions on request
