Products description

Manufacturer:
www.jaeger-schrauben.de

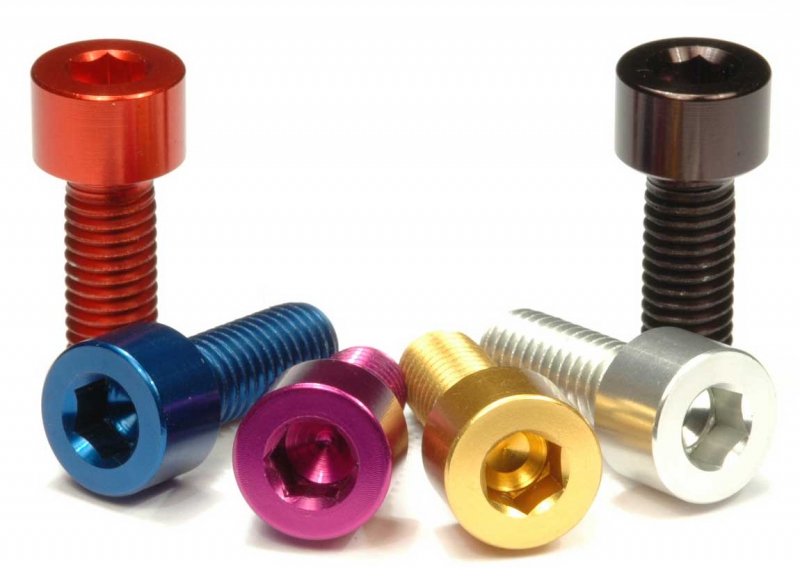

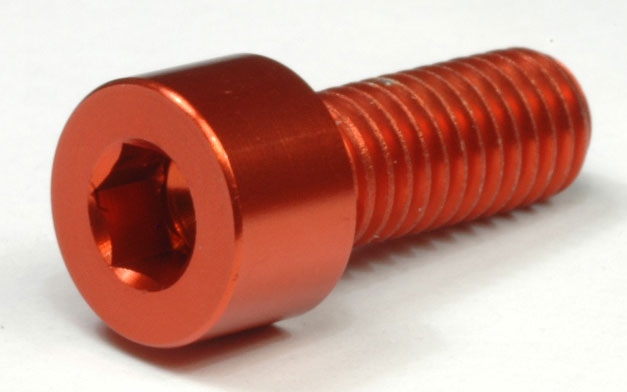

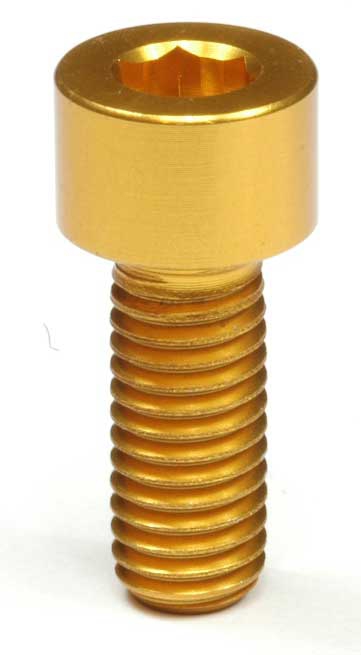

Allen head bolt
ISO 4762 / old DIN 912



Material:
high tensile aluminum 7075-T6
aircraft application


Tensile strength:
540 - 600 N/mm²
CNC made
by Jäger Schrauben
rolled thread (from diameter M5 to M8)

Spanner size:
M3 = SW 2,5, M4 = SW 3, M5 = SW 4,
M6 = SW 5, M8 = SW6

Head diameter:
M3 = 5,5 mm
M4 = 7 mm
M5 = 8,5 mm
M6 = 10 mm
M8 = 13 mm


height of head:
M3 = 3 mm
M4 = 4 mm
M5 = 5 mm
M6 = 6 mm
M8 = 8 mm


Surface finish:
red, blue, violet, gold, silver, black, green and orange are highgloss anodized,
or natural (high corrosive)

Prices:
All prices per unit.
Specialcolors green / orange 10% surcharge.
See this link [ Hier klicken ]

Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent
