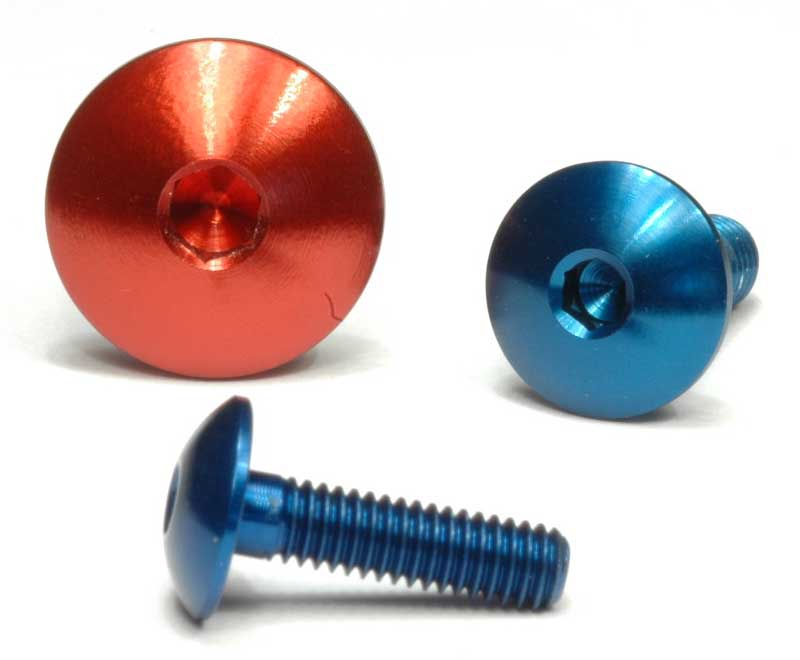

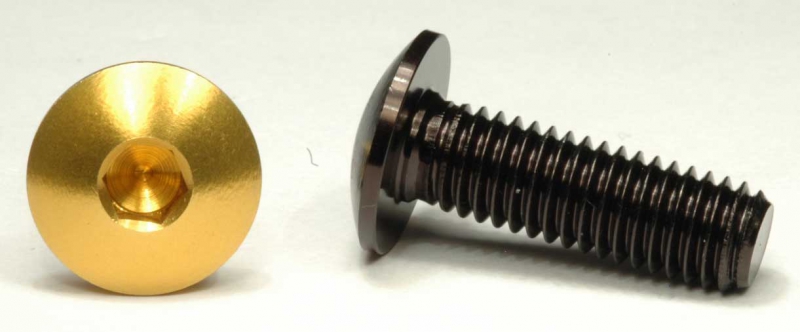

Lens head bolt
similar to DIN 7380
Material:
high tensile aluminum 7075-T6
aircraft application
Tensile strength:
540 - 600 N/mm²
CNC made by Jäger Schrauben
rolled thread (from diameter M5 to M10)
Spanner size:
M4 = SW 2,5, M5 = SW 3,
M6 = SW 4, M8 = SW 5, M10 = SW 4
Head diameter:
M4 = 10 mm
M5-S = 10mm
M5 = 12 mm
M5-L = 14mm
M6-S = 14mm
M6 = 16 mm
M8 = 16 mm
M10 = 16 mm

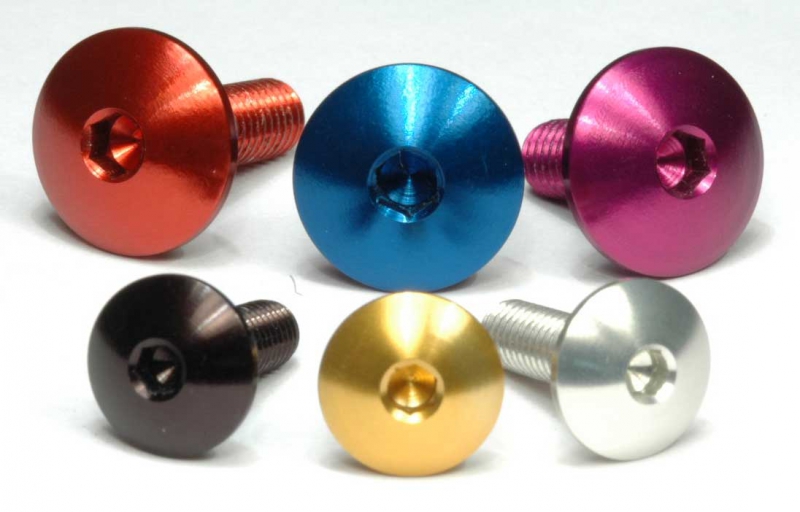

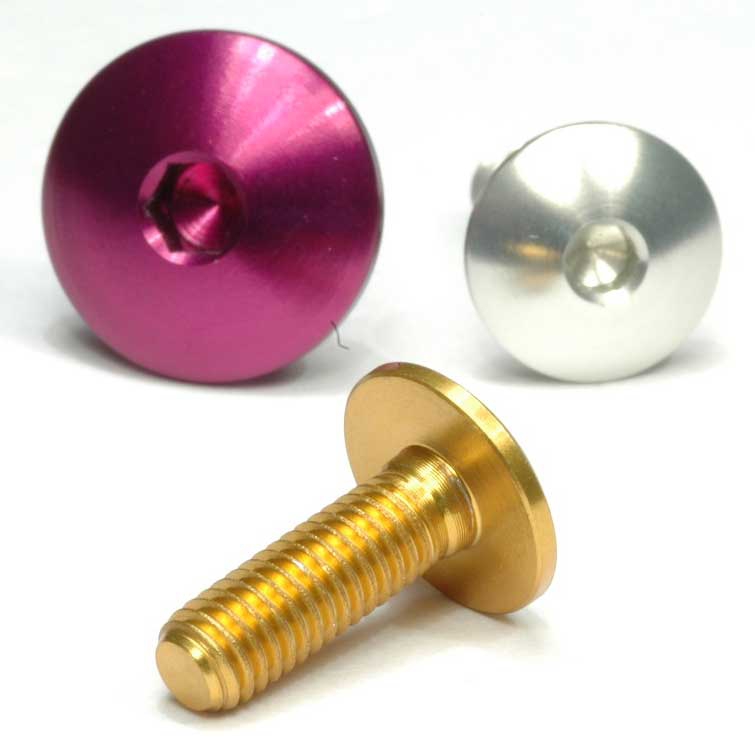

Surface finish:
red, blue, violet, gold, silver, black, green and orange are highgloss anodized,
or natural (high corrosive)
Prices:
All prices per unit.
Specialcolors green / orange 10% surcharge.
See this link [ Hier klicken ]
Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent

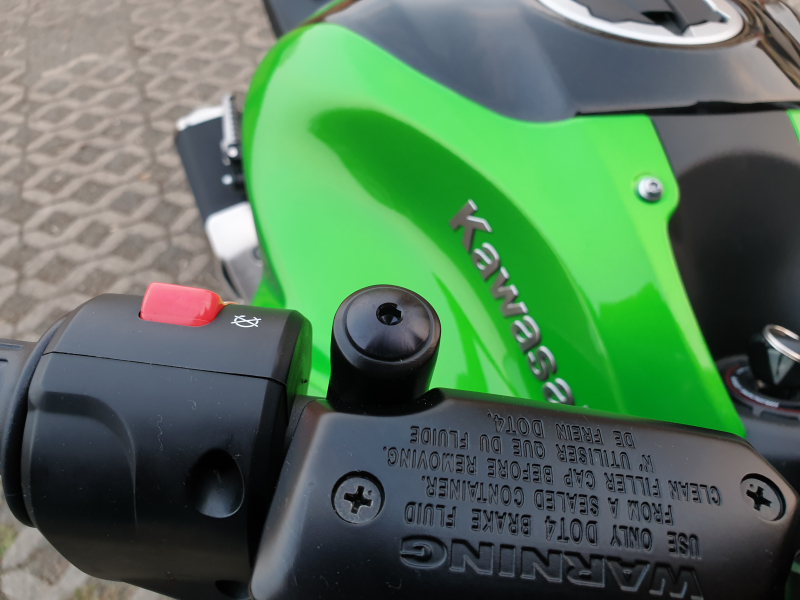

The bolt M10x1,25x15 can be up to the head screws into a thread.
e.g. as blind bolt for mirrors, which have been removed. Available. Than right-hand thread and left-hand thread
lens head bolt
similar to DIN 7380
green, orange
nut with snap ring from Polyamid - self-locking
ISO 10511 / old DIN 985
red,blue,violet,gold,silver,black,natural
nut with snap ring from Polyamid - self-locking
ISO 10511 / old DIN 985
green, orange
Aluminium washers
SO 7089 / old DIN 125
red,blue,violet,gold,silver,black
small outside diameter
Aluminium washers
ISO 7089 / old DIN 125
green, orange
small outside diameter
Lens - countersunk bolt
similar to ISO 10642 / old DIN 7991
red,blue,violet,gold,silver,black,natural
