Manufacturer:
www.jaeger-schrauben.de

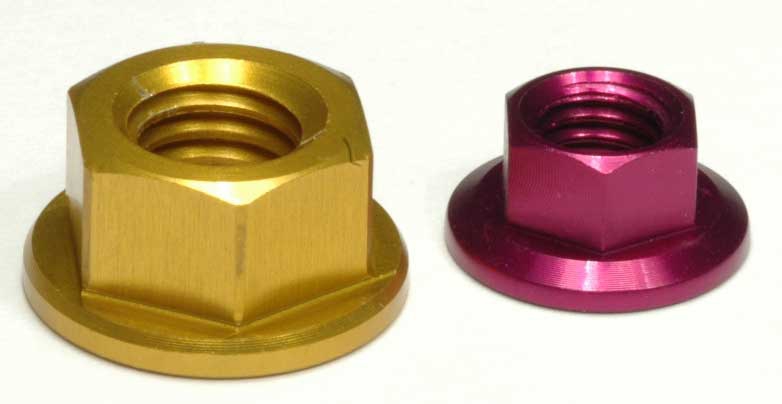

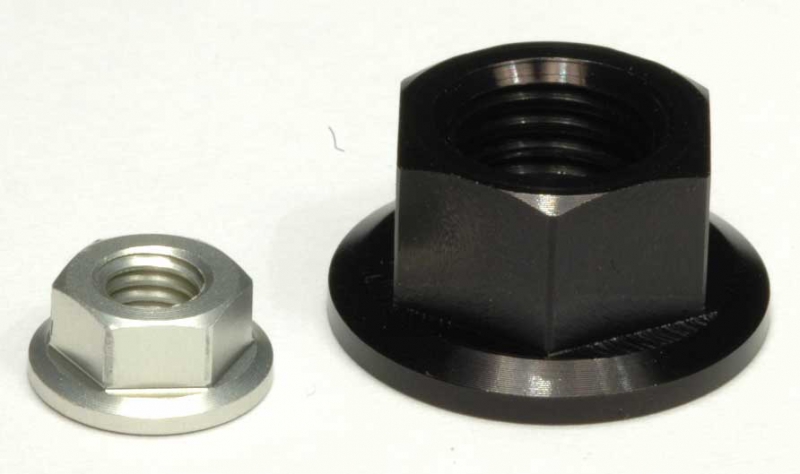

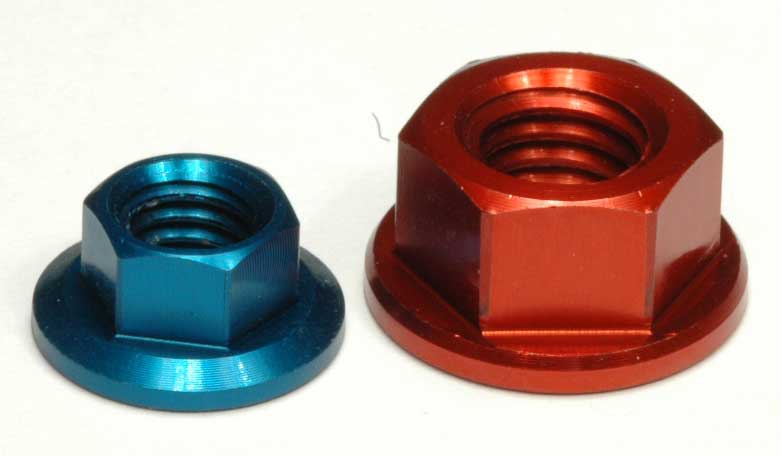

hex nut with flange / washer / collar
similar to DIN 6923
Material:
high tensile aluminum 7075-T6
aircraft application
CNC made by Jäger Schrauben
Spanner size:
M4 = SW (Spanner size) 7
M5 = SW 8, M6 = SW 8, M8 = SW 12,
M10 = SW 14, M12 = SW 17
Washerdiameter:
M4 = 10 mm, M5 = 11 mm, M6 = 13 mm,
M8 = 16 mm, M10 = 20 mm, M12 = 24 mm
Hight:
M4 = 4 mm, M5 = 5 mm, M6 = 6 mm,
M8 = 8 mm, M10 = 10 mm, M12 = 11 mm
Surface finish:

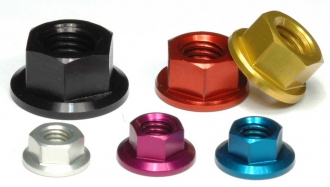

red, blue, violet, gold, silver, black, green and orange are highgloss anodized,
or natural (high corrosive)
Prices:
All prices per unit.
Specialcolors green / orange 10% surcharge.
See this link [ Hier klicken ]
Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent.
