Aluminium (7075-T6) - TCK - similar ISO 4762

Aluminium (7075-T6) - TCK - similar ISO 4762
For a larger view click on the thumbnail
Shipping time: in Stock in Stock
Für eine Preisanzeige wählen Sie die gewünschten Ausführungen
from 0,00 EUR
19 % VAT incl. excl. Shipping costs
color
size and price
Add to cart




  • Details
  • More images
  • Customer-tip

Products description

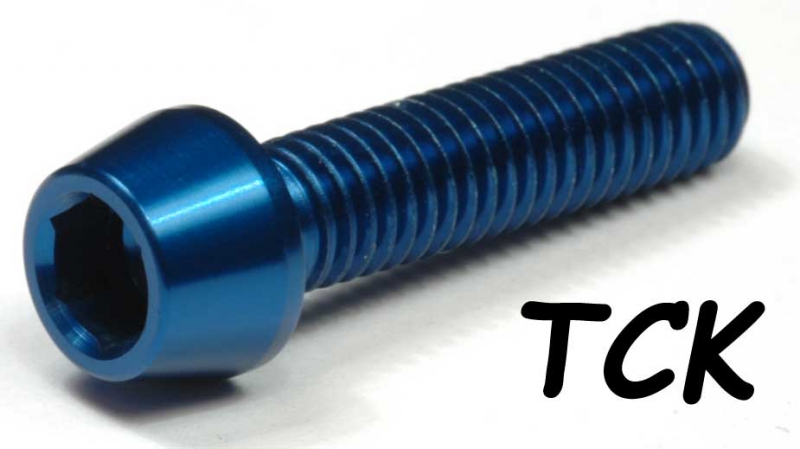

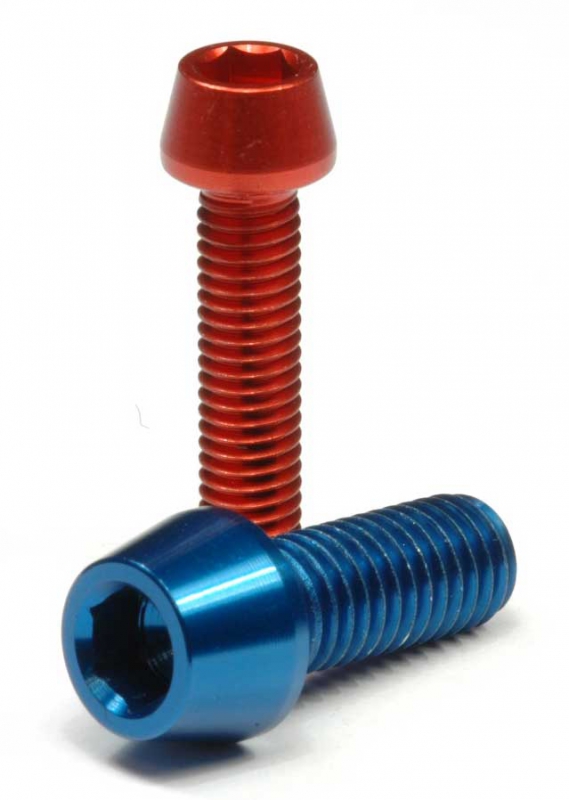

Allen head bolt with conical head
similar to ISO 4762 / old DIN 912


Material:
high tensile aluminum 7075-T6
aircraft application


Tensile strength:
540 - 600 N/mm²
CNC made
by Jäger Schrauben
rolled thread (from diameter M5 to M10)

Spanner size:
M4 = SW 3, M5 = SW 4, M6 = SW 5,
M8 = SW6, M10 = SW 8

Head diameter:
M4 = 7 mm
M5 = 8,5 mm
M6 = 10 mm
M8 = 13 mm
M10 = 16 mm


height of head:
M3 = 3 mm
M4 = 4 mm
M5 = 5 mm
M6 = 6 mm
M8 = 8 mm
M10 = 10 mm


Surface finish:

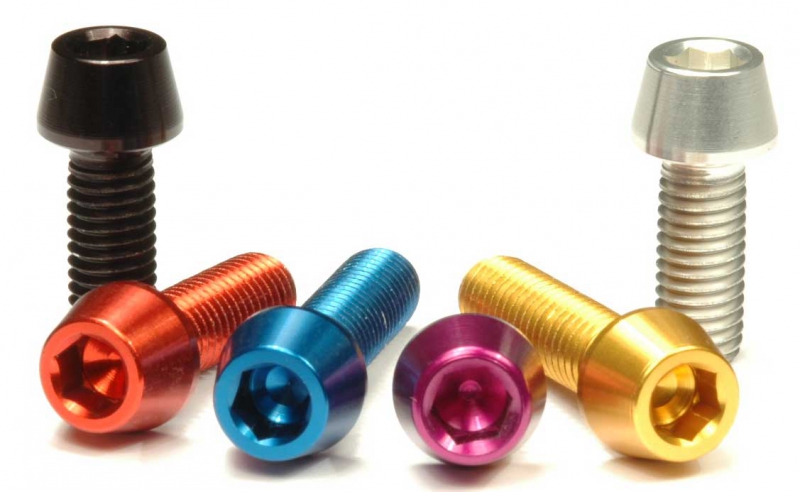

red, blue, violet, gold, silver, black, green and orange are highgloss anodized,
or natural (high corrosive)

Prices:
All prices per unit.
Specialcolors green / orange 10% surcharge.
See this link
[ Hier klicken ]

Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent
