Manufacturer:
www.jaeger-schrauben.de

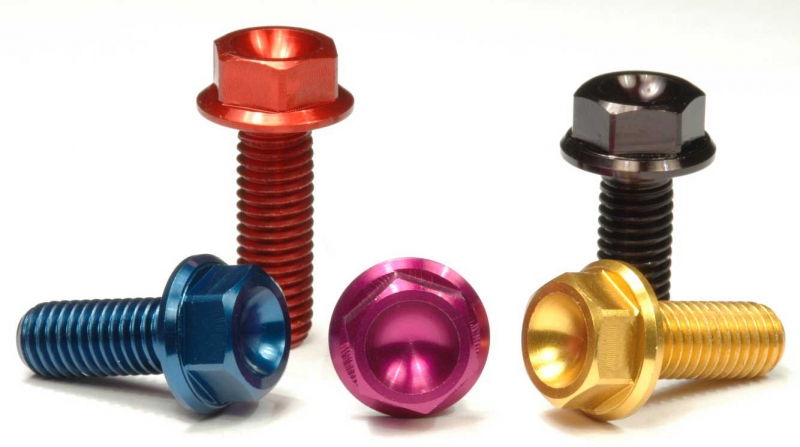

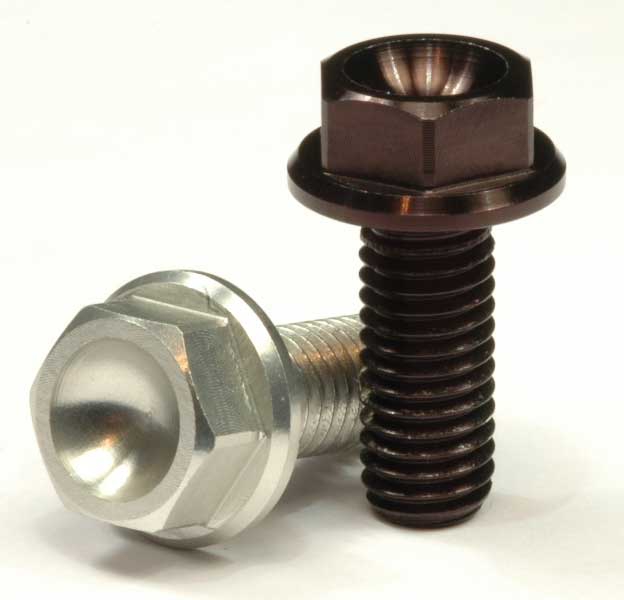

Hex bolt with flange / washer / collar
similar to DIN 6921
Material:
high tensile aluminum 7075-T6
aircraft application
Tensile strength:
540 - 600 N/mm²
CNC made by Jäger Schrauben
rolled thread
Spanner size:
M5 = SW 7, M6 = SW 8,
M8 = SW 12
Head diameter:
M5 = 10 mm
M6 = 11 mm
M8 = 16 mm
Surface finish:
red, blue, violet, gold, silver, black, green and orange are highgloss anodized,
or natural (high corrosive)
Prices:
All prices per unit.
Specialcolors green / orange 10% surcharge.
See this link [ Hier klicken ]
Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent
Allen head bolt, conical
similar to ISO 4762 / old DIN 912
red,blue,violet,gold,silver,black,natural
Aluminium washers
SO 7089 / old DIN 125
red,blue,violet,gold,silver,black
small outside diameter
Aluminium (7075-T6) quick release fastener
red,blue,gold,silver,black
hex nut with flange / washer / collar
similar to DIN 6923
red,blue,violet,gold,silver,black,natural
nut with snap ring from Polyamid - self-locking
ISO 10511 / old DIN 985
red,blue,violet,gold,silver,black,natural
Aluminium washers
ISO 7093 / old DIN 9021
red,blue,violet,gold,silver,black
large outside diameter
