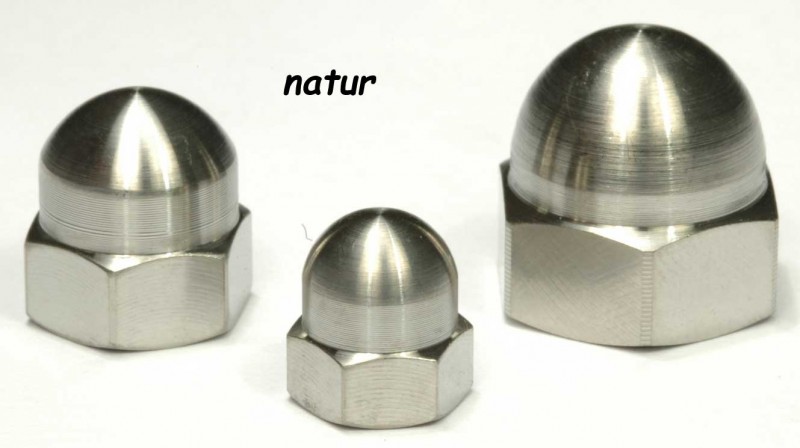

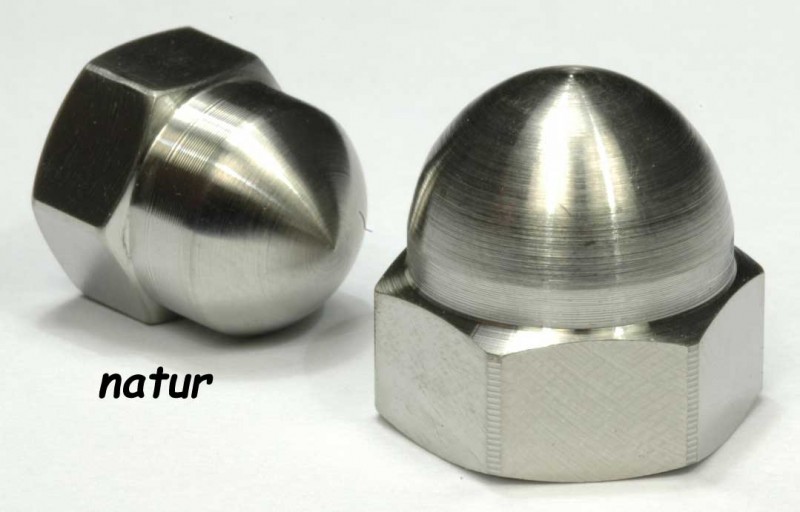

Titan (Ti6Al4V) - cap nuts nature - DIN 1587

Manufacturer:
www.jaeger-schrauben.de

DIN 1587 (high form)

Material:
Ti-6AI-4V

Tensile strength:
930 - 1000 N/mm ²

Spanner size:
M5 = SW (Spanner size) 8
M6 = SW10
M8 = SW13
M10 = SW17

hight:
M5 = 10mm
M6 = 12mm
M8 = 15mm
M10 = 18mm

Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50€)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)
These can you found under this Link[ click here ]

We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.

Other dimensions on request
