Products description
Manufacturer:
www.jaeger-schrauben.de
DIN 1587 (high form)
Material:
Ti-6AI-4V
Tensile strength:
930 - 1000 N/mm ²
Spanner size:
M5 = SW (Spanner size) 8
M6 = SW10
M8 = SW13
M10 = SW17
hight:
M5 = 10mm
M6 = 12mm
M8 = 15mm
M10 = 18mm
Prices:
The prices listed here include all surcharges.

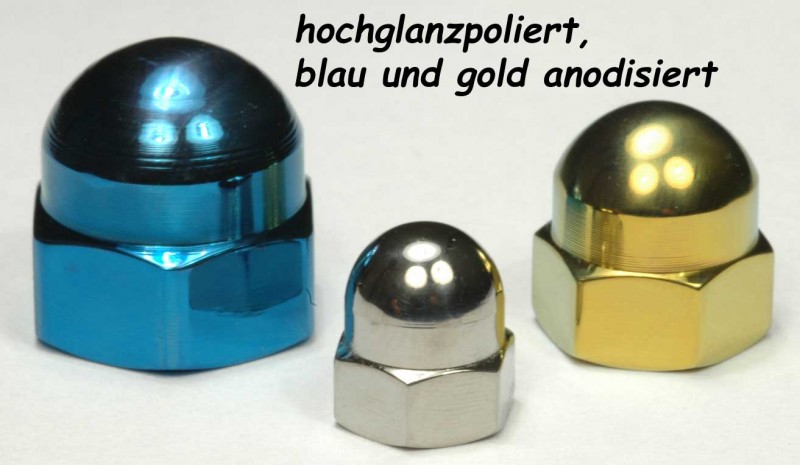

Titan we offer in the following color variations:

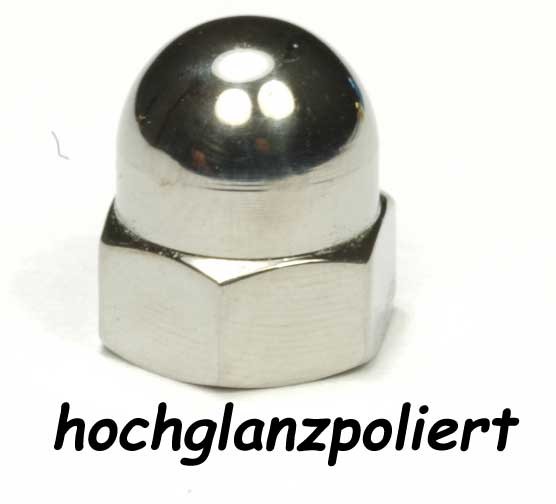

polished (15% surcharge)

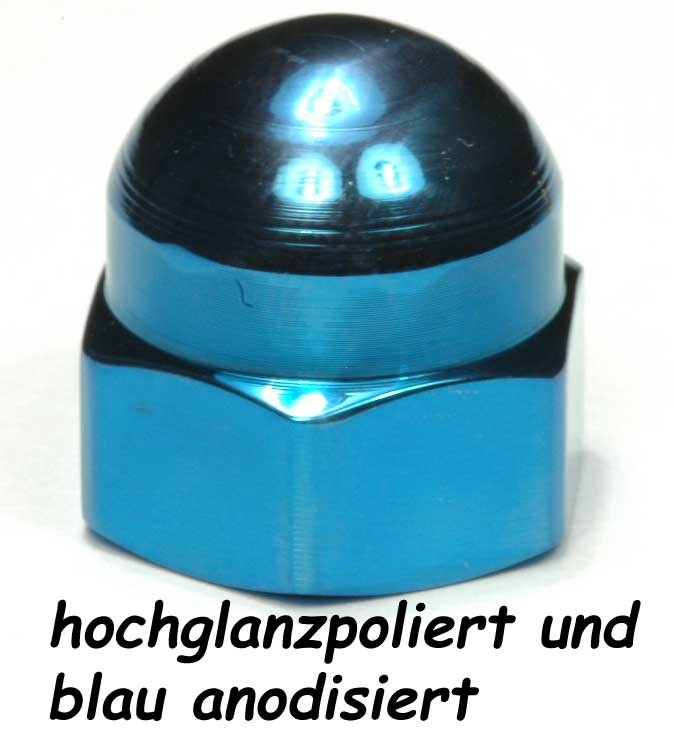

polished and blue anodized (15% surcharge)

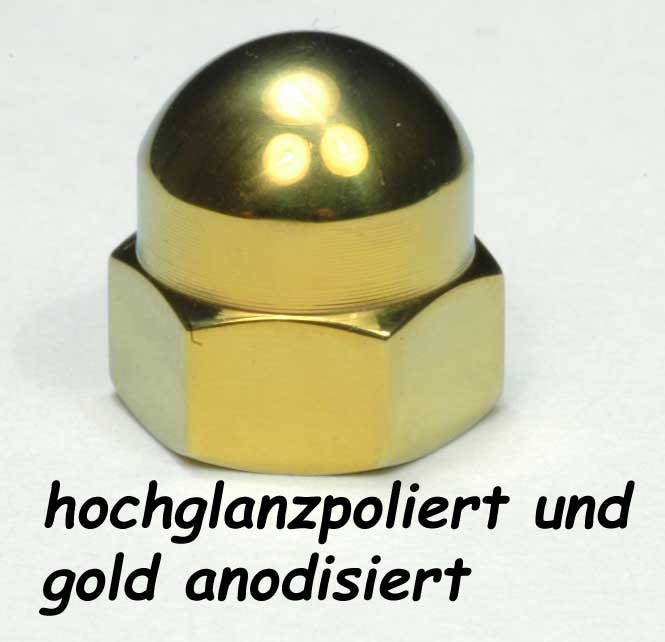

polished and gold anodized (15% surcharge)

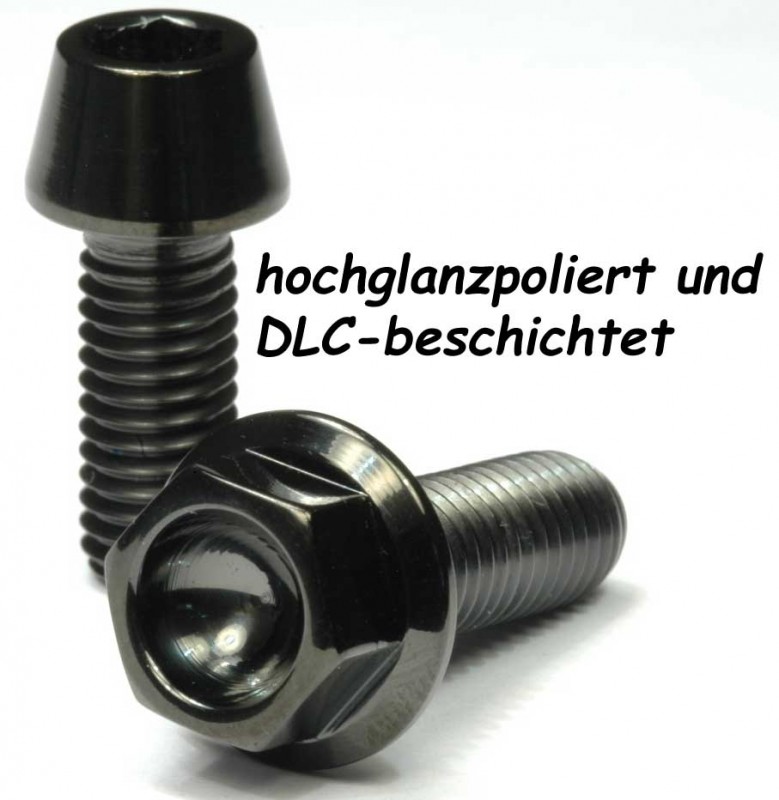

polished and black DLC coated (15% surcharge + 3,50€)

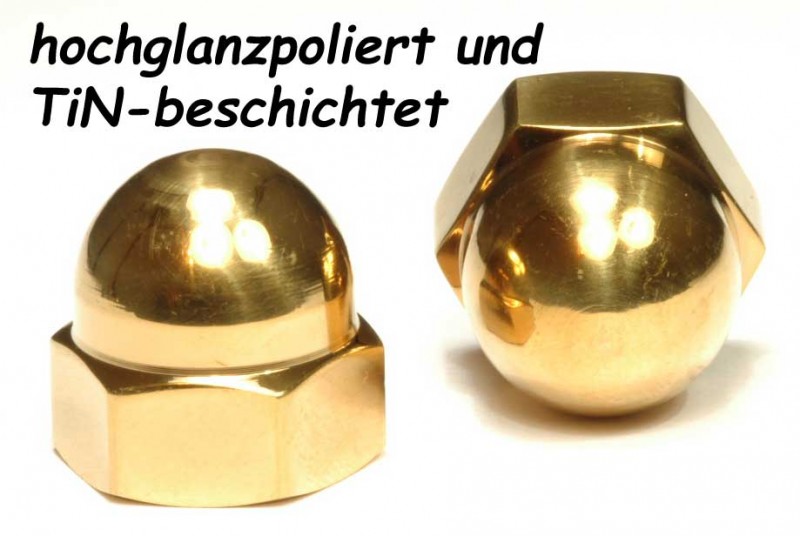

polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)
Prices for titanium nature you will find under this Link [ click here ]
We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.
Ausschluss bzw. vorzeitiges Erlöschen des Widerrufsrechts
Das Widerrufsrecht besteht nicht bei Verträgen zur Lieferung von Waren, die nicht vorgefertigt sind und für deren Herstellung eine individuelle Auswahl oder Bestimmung durch den Verbraucher maßgeblich ist, oder die eindeutig auf die persönlichen Bedürfnisse des Verbrauchers zugeschnitten sind.
Other dimensions on request
