Products description
Manufacturer:
www.jaeger-schrauben.de
similar to DIN 125 / DIN 9021
Material:
Ti-6AI-4V
All washers are completely turned from round material
and are therefore absolutely perfect
Tensile strength:
930 - 1000 N/mm ²
Washerdiameter:
M3 = 6mm, M4 = 9mm, M5 = 10mm
M5S = 8,5mm, M5SS = 7,9mm, M5L = 15mm
M6 = 12mm, M6S = 10mm, M6L = 18mm
M8 = 17mm, M8L = 24mm, M10 = 20mm
M12 = 24mm
hight
M3 = 0,5mm, M4 = 0,8mm, M5 = 1mm
M5S = 1mm, M5SS = 1mm, M5L = 1mm
M6 = 1,6mm, M6S = 1,4mm, M6L = 1,6mm
M8 = 1,7mm, M8L = 1,7mm, M10 = 2mm
M12 = 2,5mm
Prices:
The prices listed here include all surcharges.
Titan we offer in the following color variations:
polished (15% surcharge)

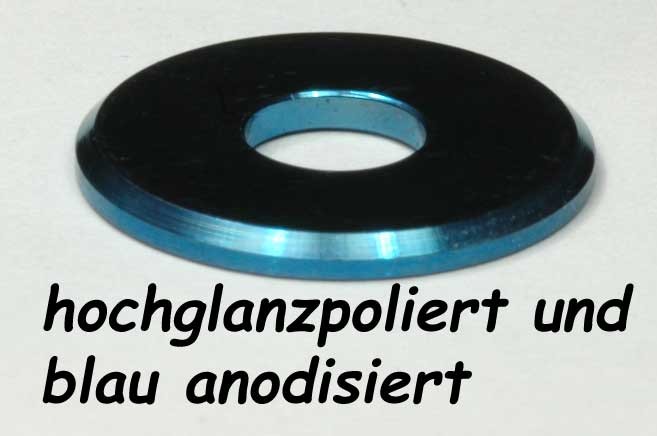

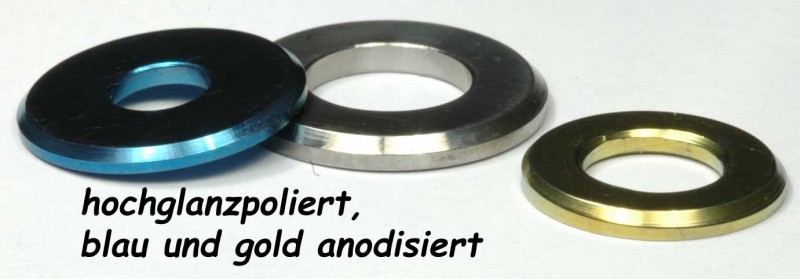

polished and blue anodized (15% surcharge)

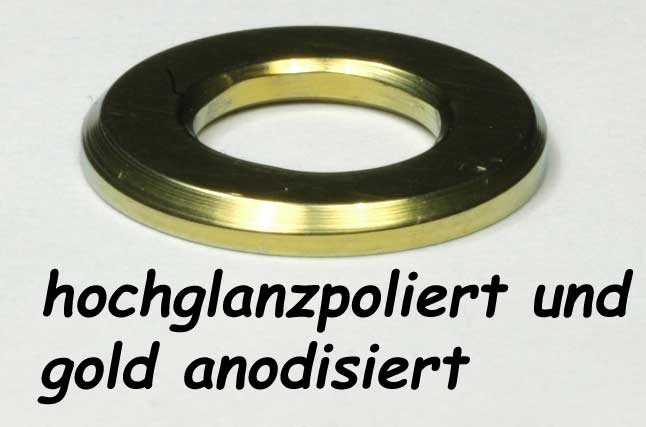

polished and gold anodized (15% surcharge)

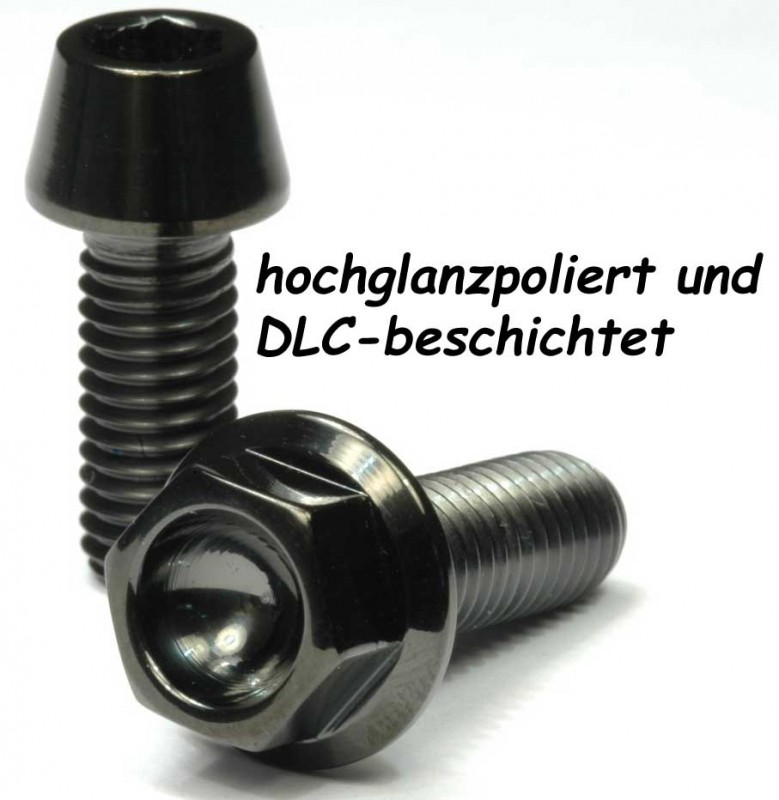

polished and black DLC coated (15% surcharge + 3,50€)

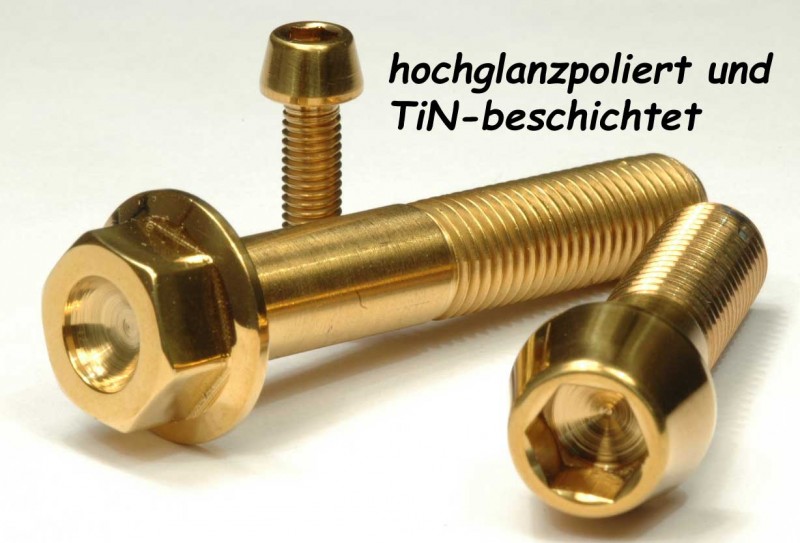

polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)
Prices for titanium nature you will find under this Link [ click here ]
We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.
Ausschluss bzw. vorzeitiges Erlöschen des Widerrufsrechts
Das Widerrufsrecht besteht nicht bei Verträgen zur Lieferung von Waren, die nicht vorgefertigt sind und für deren Herstellung eine individuelle Auswahl oder Bestimmung durch den Verbraucher maßgeblich ist, oder die eindeutig auf die persönlichen Bedürfnisse des Verbrauchers zugeschnitten sind.
Other dimensions on request
