Manufacturer:
www.jaeger-schrauben.de
Material:
Ti-6AI-4V
rolled thread
Tensile strength:
930 - 1000 N/mm ²

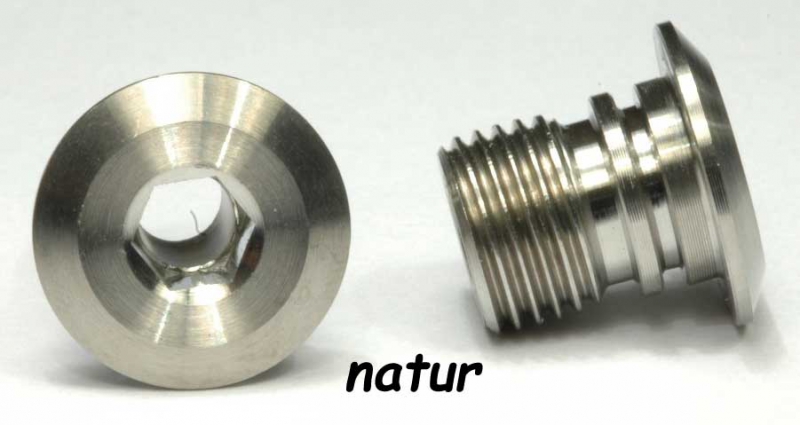

derailleur screw
Shimano XTR shadow / 970 / 980
Mass:
3,5g
Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
polished and black DLC coated (15% surcharge + 3,50€)
polished and gold titanium nitride coated (TiN) (15% surcharge + 2,50€)
These can you found under this Link [ click here ]
We polishing and anodizing the titanium products themselves, so that these are available from stock.
The DLC and TiN coating can be externally we perform, here is a delivery time of approximately 4-8 weeks is restarted.
Note:
The original screw must be fully cased piles are produced. The best the screw from the rear derailleur on the threaded end in a vise margins. Then the screw with a 8mm drill bit boring. The Nylonscheibe and the ring can be used again. Isn't really a problem.
washers
similar to DIN 125 / DIN 9021
highly polished, blue, gold, black
M5x14,2
countersunk bolt for rear derailleur
Titan nature
Allen head bolt, conical
similar to ISO 4762 / old DIN 912
Titan nature
Allen head bolt
ISO 4762 / old DIN 912
Titan nature
lens head screw
similar DIN 7380
Titan nature
