Bolt-Kit Motorbike HONDA CB 500 / CB 500 S / CBF 500 '04-

Material:
high tensile aluminum 7075
aircraft application

Tensile strength:
540 - 600 N/mm²
CNC made by Jäger Schrauben
rolled thread (from diameter M5 to M10)

Kit A:
consisting of screws for:
Ku - Ri - Li
quantity screws: 26

Kit B:
consisting of screws for:
Ku - Ri - Li - Wa
quantity screws: 31

Each bolt kit is obviously a detailed installation instructions.

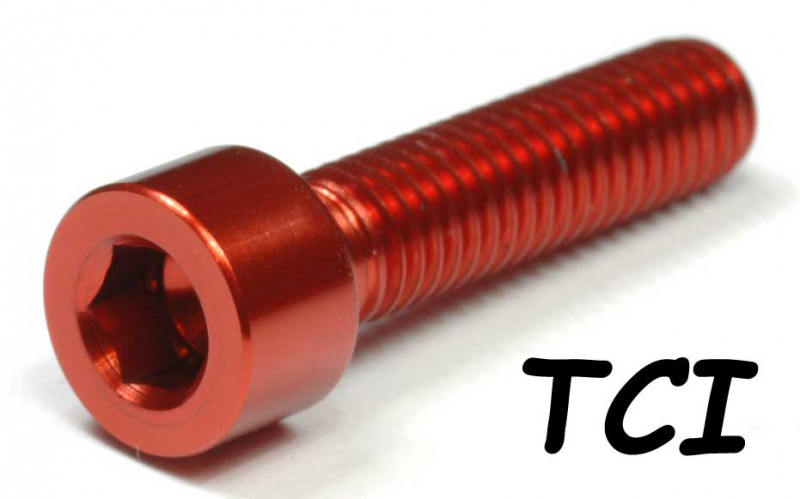

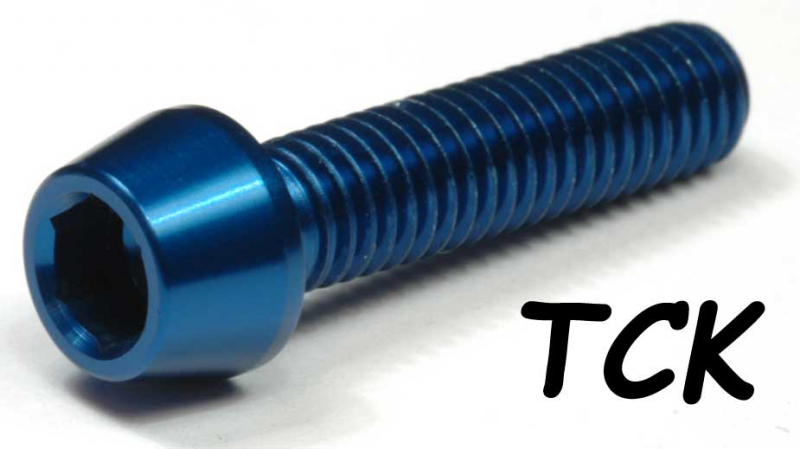

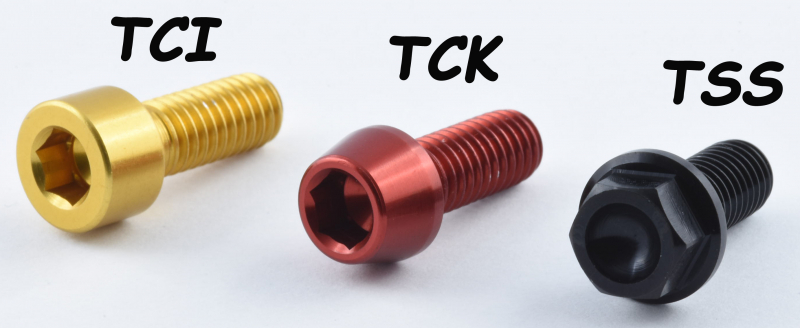

Please specify that we deliver the bolt kit with cylindrical head (TCI) or conical head (TCK).
Fairing bolts are delivered than allen cheese-head screw (TRL).
The screws please basically greasing with bolt-paste.
Green and Orange 10% surcharge.

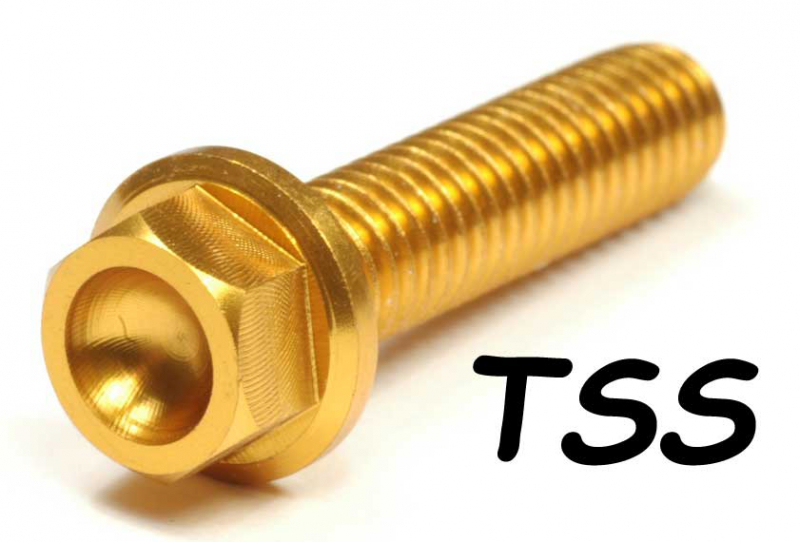

Bolt-Kits A and B also available with TSS head. 25% surcharge.
Petrol-cap kits are generally delivered with cylindrical head (TCI).

An = starter
Dk = cover
Ka = cover gimbal
Ku = cover clutch
Kuz = clutch master zylinder
Li = generator
Ölp = oil pump
Ölw = oil pan
Ri = pinion lid
Wa = water pump
rechts = right
links = left
Zündung = ignition
Verkleidung = fairing
Rahmen = frame
Verkleidungsscheibe = screen
Schnellverschlüsse = quick release fastener

Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent.
