Bolt-Kit Motorbike HONDA CB 750 Four '69-'78

Bolt-Kit Motorbike HONDA CB 750 Four 69-78
For a larger view click on the thumbnail
Shipping time: in Stock in Stock
Product no.: H059
Für eine Preisanzeige wählen Sie die gewünschten Ausführungen
0,00 EUR
19 % VAT incl. excl. Shipping costs
Bolt set
bolt head
Add to cart




  • Details
  • More images
  • Customer-tip

Products description

Material:
high tensile aluminum 7075
aircraft application


Tensile strength:
540 - 600 N/mm²
CNC made by Jäger Schrauben
rolled thread (from diameter M5 to M10)


Kit A:
consisting of screws for:
Ku - Dk rechts - Li - Ri
quantity screws: 39

Kit B:
consisting of screws for:
Ku-Dk rechts-Li-Ri-Ölw-Ölp-Ventildkeckel
quantity screws: 74

Each bolt kit is obviously a detailed installation instructions.

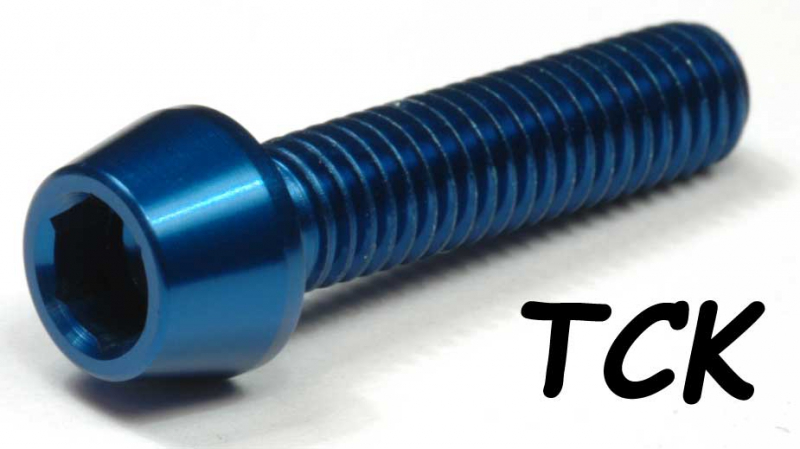

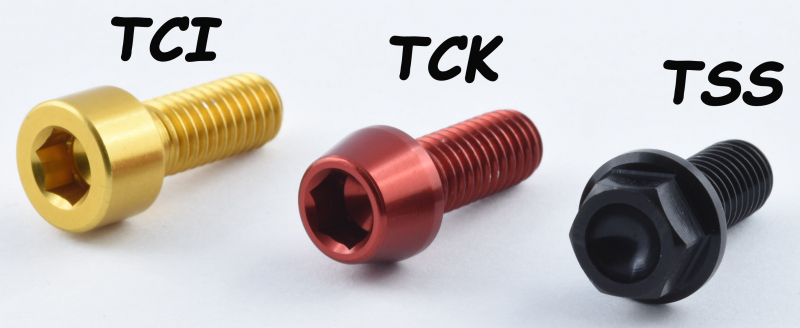

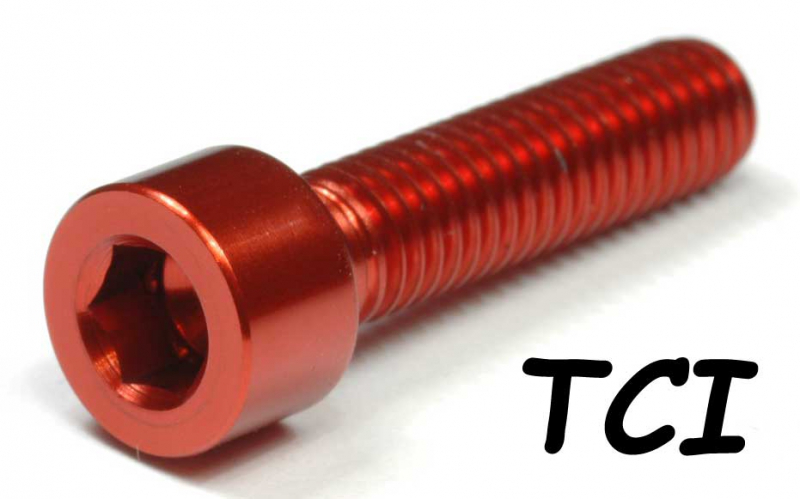

Please specify that we deliver the bolt kit with cylindrical head (TCI) or conical head (TCK).
Fairing bolts are delivered than allen cheese-head screw (TRL).
The screws please basically greasing with bolt-paste.

Green and Orange 10% surcharge.

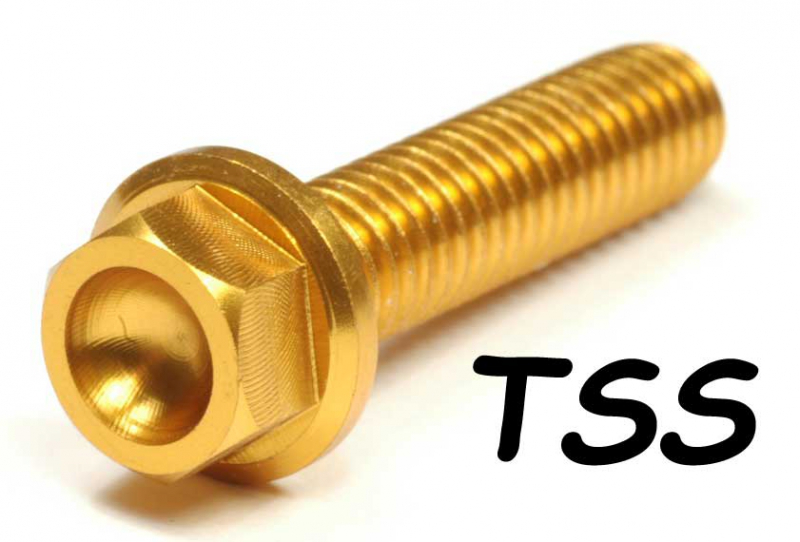

Bolt-Kits A also available with TSS head. 25% surcharge.
Petrol-cap kits are generally delivered with cylindrical head (TCI).

An = starter
Dk = cover
Ka = cover gimbal
Ku = cover clutch
Kuz = clutch master zylinder
Li = generator
Ölp = oil pump
Ölw = oil pan
Ri = pinion lid
Wa = water pump
rechts = right
links = left
Zündung = ignition
Verkleidung = fairing
Rahmen = frame
Verkleidungsscheibe = screen
Schnellverschlüsse = quick release fastener


Attention:
Orange is new in our programe. We do not have any experience on UV resistance.
We therefore cannot take responsibility for possibile color changes.
All other colors are UV resistent.
