Manufacturer:
www.jaeger-schrauben.de

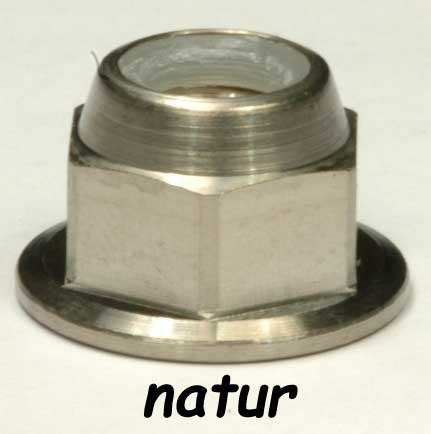

similar to ISO 4161 / alt DIN 6926
Material:
Ti-6AI-4V
Tensile strength:
930 - 1000 N/mm ²
Spanner size:
M4 = SW 7 (Spanner size)
M5 = SW 8
M6 = SW10, M8 = SW13
M10 = SW15, M12 = SW18
Washerdiameter:
M4 = 10mm
M5 = 12mm, M6 = 14mm
M8 = 18mm, M10 = 22mm
M12 = 26mm
hight
M4 = 6mm
M5 = 7mm, M6 = 8,5mm
M8 = 11mm, M10 = 13,5mm
M12 = 16mm
Prices:
All listed prices per piece in Titan nature.
Titan we offer in the following color variations:
polished (15% surcharge)
polished and blue anodized (15% surcharge)
polished and gold anodized (15% surcharge)
These can you found under this Link[ click here ]
We polishing and anodizing the titanium products themselves, so that these are available from stock.
Other dimensions on request
